SKF belt alignment tool TKBA20

China SKF belt alignment tool TKBA20 supplier
SKF belt alignment tool TKBA20 supplier SKF belt alignment tool TKBA20 supplier SKF belt alignment tool TKBA20 supplier SKF belt alignment tool TKBA20 supplier SKF belt alignment tool TKBA20 supplier

Large Image :  SKF belt alignment tool TKBA20

Product Details:

Brand Name: SKF
Model Number: TKBA20

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1-2000/set
Packaging Details: plastic case per one set
Delivery Time: 1-2 days
Payment Terms: T/T, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description

Belt alignment tool TKBA 10 and TKBA 20

Versatile tools for pulley and sprocket alignment

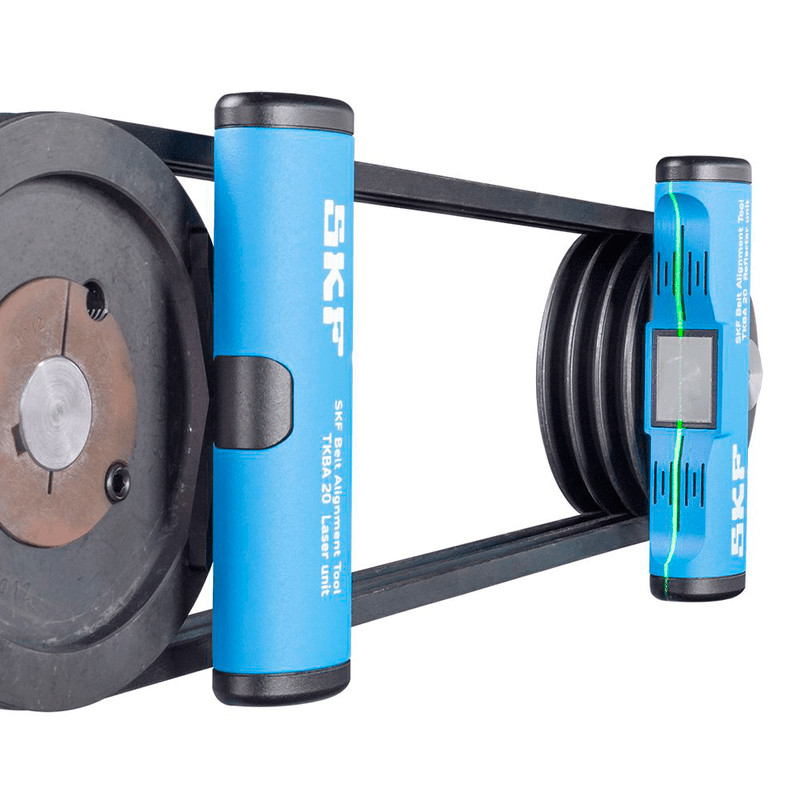

The SKF TKBA 10 and TKBA 20 allow pulleys and sprockets to be aligned on the side face. The unit magnetically attaches to the inside or outside face of almost any belt pulley or chain sprocket and has no small parts or targets that can get lost. A laser line is projected from the transmitter unit to the reflector unit mounted on the opposite pulley. A reference line on the reflector unit directly indicates the offset and vertical angle misalignment. The reflected laser line shown on the transmitter unit shows the horizontal angle misalignment of all three.

  • Powerful magnets allow fast and easy attachment
  • Facilitates simultaneous adjustment of tension and alignment
  • Can be used on almost all machines using V belts, banded belts, ribbed belts and most other belts as well as chain sprockets
  • SKF TKBA 10 utilises a red laser and can be used for distances up to 3 m (10 ft)
  • SKF TKBA 20 utilises a highly visible green laser and can be used for distances up to 6 m (20 ft). It can even be used outdoors in sunny conditions
  • Sturdy aluminium housings help ensure assembly stability and accuracy during the alignment process



Red or green laser

TKBA 10
Utilises a red laser and can be used for distances up to 3 m (10 ft).
  TKBA 20
Utilises a highly visible green laser and can be used for distances up to 6 m (20 ft). It can even be used outdoors in sunny conditions.

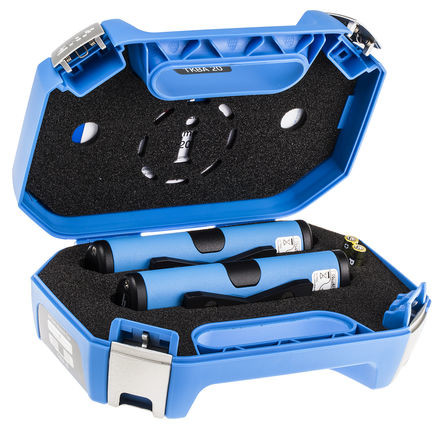

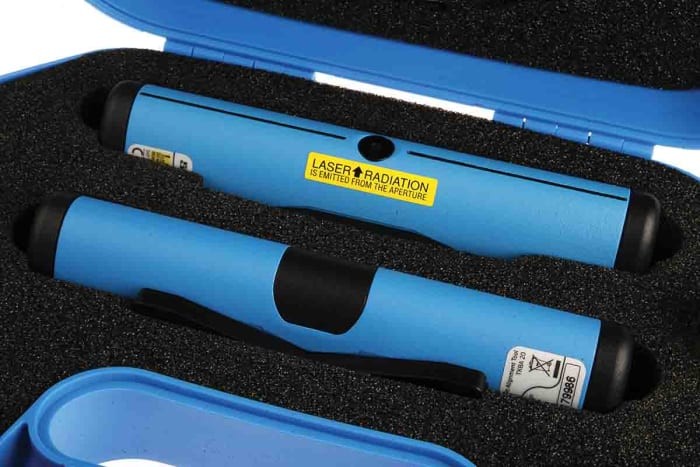

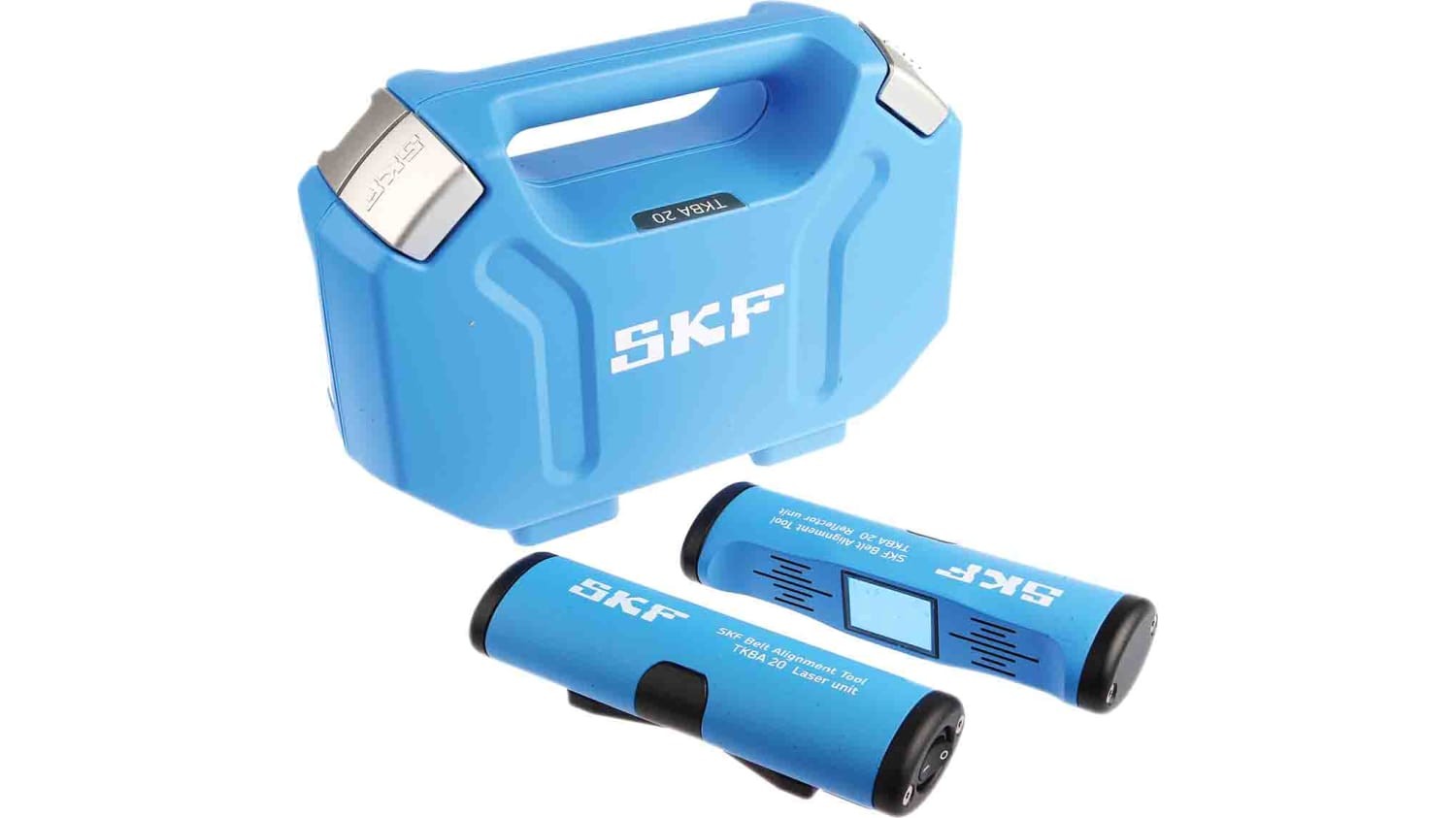

INS0465V_NG-TKGB10-16x9.pngINS0468V_NG-TKBA20-16x9.pngTKBA 10 in carrying caseTKBA 20 in carrying case



TECHNICAL DATA TKBA 10
Designation   TKBA 10
Type of laser   Red laser diode
Laser   1x Built-in class 2 laser, <1 mW, 635 nm
Laser line length   2 m at 2 m (6.6 ft at 6.6 ft)
Measurement accuracy angular   Better than 0,02° at 2 m (6.6 ft)
Measurement accuracy offset   Better than 0,5 mm (0.02 in.)
Measurement distance   50 mm to 3 000 mm (2 in. to 10 ft)
Control   Laser on/off rocker switch
Housing material   Aluminum, powder coat finish
Dimensions Transmitter unit 169 x 51 x 37 mm (6.65 x 2.0 x 1.5 in.)
Receiver unit 169 x 51 x 37 mm (6.5 x 2.0 x 1.5 in.)
Reflector dimensions 22 x 32 mm (0.9 x 1.3 in.)
Weight Transmitter unit 365 g (0.8 lbs)
Receiver unit 340 g (0.7 lbs)
Mounting   Magnetic, side mounted
V-guides   N/A
Battery   2x AAA Alkaline type IEC LR03
Operation time   25 hours continuous operation
Carrying case dimensions   260 x 85 x 180 mm (10.3 x 3.4 x 7.0 in.)
Total weight (incl. case)   1,3 kg (2.9 lbs)
Operating temperature   0 to 40 °C (32 to 104 °F)
Storage temperature   –20 to +60 °C (–4 to +140 °F)
Relative humidity   10 to 90% RH non-condensing
IP rating   IP 40
Calibration certificate   Valid for two years
Case contents   1x TKBA 10 transmitter unit
1x TKBA 10 receiver unit
2x AAA batteries
1x Printed instructions for use
1x Calibration certificate
TECHNICAL DATA TKBA 20
Designation   TKBA 20
Type of laser   Green laser diode
Laser   1x Built-in class 2 laser, <1 mW, 532 nm
Laser line length   2 m at 2 m (6.6 ft at 6.6 ft)
Measurement accuracy angular   Better than 0,02° at 2 m (6.6 ft)
Measurement accuracy offset   Better than 0,5 mm (0.02 in.)
Measurement distance   50 mm to 6 000 mm (2 in. to 20 ft)
Control   Laser on/off rocker switch
Housing material   Aluminum, powder coat finish
Dimensions Transmitter unit 169 x 51 x 37 mm (6.65 x 2.0 x 1.5 in.)
Receiver unit 169 x 51 x 37 mm (6.5 x 2.0 x 1.5 in.)
Reflector dimensions 22 x 32 mm (0.9 x 1.3 in.)
Weight Transmitter unit 365 g (0.8 lbs)
Receiver unit 340 g (0.7 lbs)
Mounting   Magnetic, side mounted
V-guides   N/A
Battery   2x AAA Alkaline type IEC LR03
Operation time   8 hours continuous operation
Carrying case dimensions   260 x 180 x 85 mm (10.2 x 7.1 x 3.3 in.)
Total weight (incl. case   1,3 kg (2.9 lbs)
Operating temperature   0 to 40 °C (32 to 104 °F)
Storage temperature   –20 to +60 °C (–4 to +140 °F)
Relative humidity   10 to 90% RH non-condensing
IP rating   IP 40
Calibration certificate   Valid for two years
Case contents   1x TKBA 20 transmitter unit
1x TKBA 20 receiver unit
2x AAA batteries
1x Printed instructions for use
1x Calibration certificate
