SKF original strong back puller TMBS100E

I'm Online Chat Now

SKF original strong back puller TMBS100E

China SKF original strong back puller TMBS100E supplier
SKF original strong back puller TMBS100E supplier SKF original strong back puller TMBS100E supplier SKF original strong back puller TMBS100E supplier

Large Image :  SKF original strong back puller TMBS100E

Product Details:

Place of Origin: TAIWAN
Brand Name: SKF
Model Number: TMBS100E

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plastic case per one set
Delivery Time: 1-2 days
Payment Terms: T/T, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description

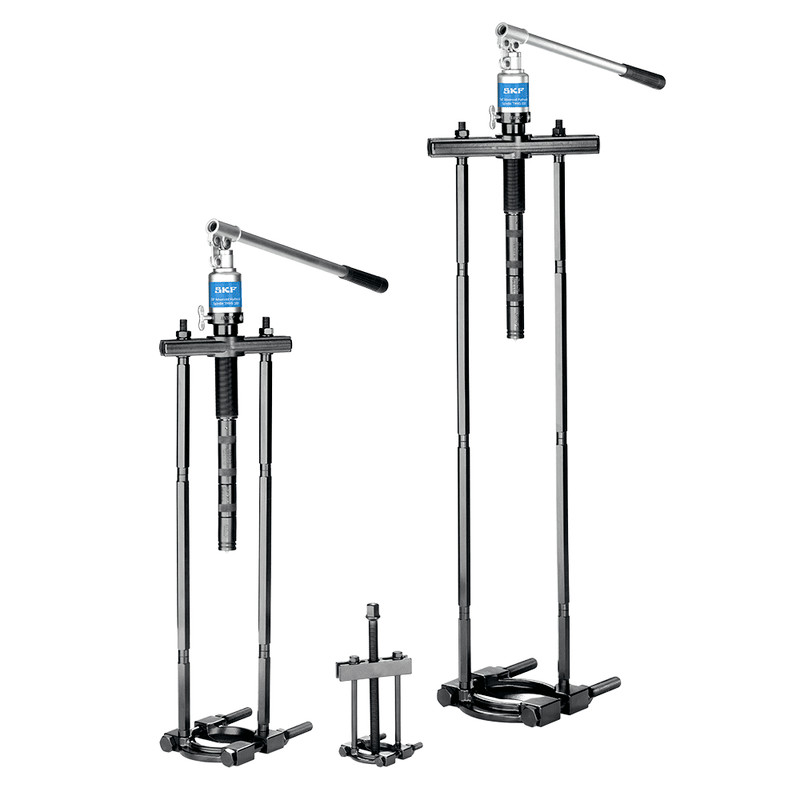

Strong back pullers

Easy bearing dismounting even in the tightest spaces

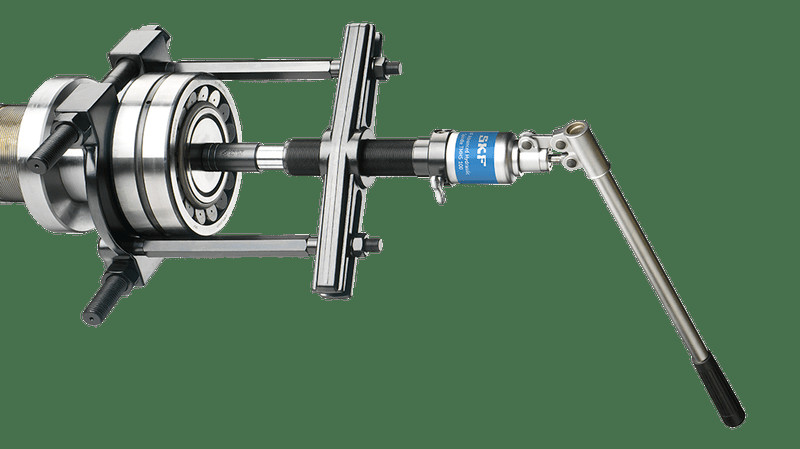

The SKF TMBS E strong back pullers facilitate dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or where the application demands a long reach. TMBS 100E and the TMBS 150E bearing extractors are equipped with a hydraulic spindle, which allows for effortless application of force up to 100 kN (11.2 ton US). The TMBS 50E is equipped with a mechanical spindle for force generation.


  • Special separator design allows the puller to be easily inserted between the bearing and the shoulder on the shaft
  • The spring-loaded centre point of the hydraulic spindle allows easy puller centring minimizing the risk of shaft damage
  • The firm grip behind the bearing’s inner ring reduces the force required to dismount the bearing
  • The hydraulic spindle is equipped with a safety valve, which minimises the risk of puller overload
  • A hydraulic spindle stroke of 80 mm (3.1 in.) helps facilitate dismounting in one operation
  • SKF TMBS 50E is equipped with a mechanical spindle for force generation
  • SKF TMBS 100E and the SKF TMBS 150E are equipped with a hydraulic spindle, which allows for easy application of force up to 100 kN (11.2 US ton)
  • Supplied with hydraulic spindle extension pieces to allow quick adaptation to pulling length
  • SKF TMBS 100E and SKF TMBS 150E are supplied with extension rods to allow quick adaptation to pulling lengths up to 816 mm (32.1 in.)



TECHNICAL DATA TMBS 100E
DesignationTMBS 100E

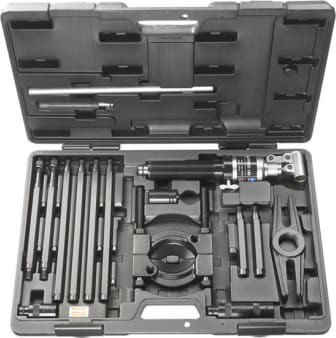

Contents1 x separator set
2 x main rods
2 x extension rods, 125 mm (4.9 in.)
4 x extension rods, 285 mm (11.2 in.)
1 x beam
1 x hydraulic spindle TMHS 100
2 x extension pieces for hydraulic spindle; 50, 100 mm (2.0, 3.9 in.)
1 x nosepiece with centre point for hydraulic spindle
Maximum stroke80 mm (3.1 in.)
Nominal working force100 kN (11.2 US ton)
Maximum reach120–816 mm (4.7–31.1 in.)
Shaft diameter range20–100 mm (0.8–4 in.)
Threading hydraulic cylinder1 1/2-16 UN
Carrying case dimensions580 x 410 x 70 mm (23 x 16 x 2.8 in.)
Weight13,5 kg (29.8 lb)

SPARE PARTS TMBS 100E
DescriptionDesignation
Advanced hydraulic spindle, 100 kNTMHS 100
Advanced hydraulic spindle, 100 kN, spindle onlyTMHS 100-1
Set of extension pieces for the hydraulic spindle, nose pieceTMHS 8T
BeamTMBS 100E-1
Main rods, nuts, washers (set)TMBS 100E-2
Extension rods 125 mm/4.9 in (2pcs)TMBS 100E-3
Extension rods 285 mm/11.2 in (4pcs)TMBS 100E-4
Separator (complete)TMBS 100E-5





TECHNICAL DATA TMBS 150E
DesignationTMBS 150E
Contents1 x separator set
2 x main rods
2 x extension rods, 125 mm (4.9 in.)
4 x extension rods, 285 mm (11.2 in.)
1 x beam
1 x hydraulic spindle TMHS 100
2 x extension pieces for hydraulic spindle; 50, 100 mm (2.0, 3.9 in.)
1 x nosepiece with centre point for hydraulic spindle
Maximum stroke80 mm (3.1 in.)
Nominal working force100 kN (11.2 US ton)
Maximum reach120–816 mm (4.7–31.1 in.)
Shaft diameter range35–150 mm (1.4–6 in.)
Threading hydraulic cylinder1 1/2-16 UN
Carrying case dimensions580 x 410 x 70 mm (23 x 16 x 2.8 in.)
Weight17 kg (37.5 lb)

SPARE PARTS TMBS 150E
DescriptionDesignation
Advanced hydraulic spindle, 100 kNTMHS 100
Advanced hydraulic spindle, 100 kN, spindle onlyTMHS 100-1
Set of extension pieces for the hydraulic spindle, nose pieceTMHS 8T
BeamTMBS 150E-1
Main rods, nuts, washers (set)TMBS 100E-2
Extension rods 125 mm/4.9 in (2pcs)TMBS 100E-3
Extension rods 285 mm/11.2 in (4pcs)TMBS 100E-4
Separator (complete)TMBS 150E-5
