Double row spherical roller bearings 239/500 CA/W33

Double row spherical roller bearings 239/500 CA/W33

China Double row spherical roller bearings 239/500 CA/W33 supplier

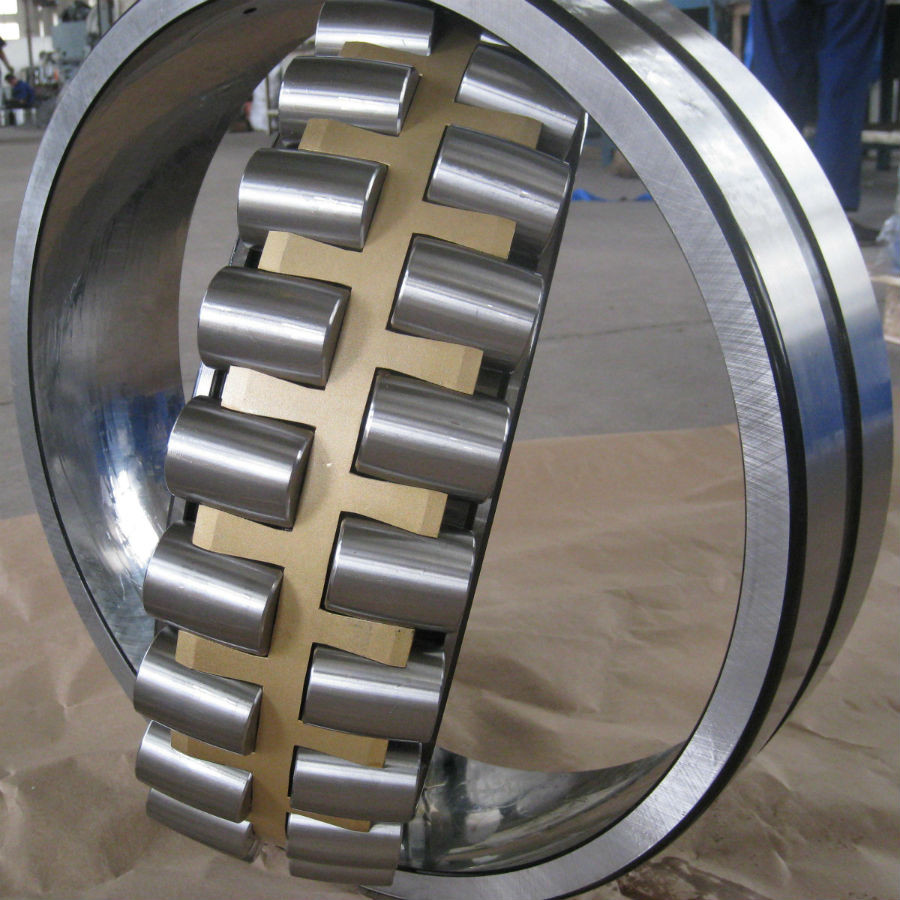

Large Image :  Double row spherical roller bearings 239/500 CA/W33

Product Details:

Place of Origin: China
Model Number: 239/500 CA/W33

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US$4144.65 or Negotiable
Packaging Details: Industrial packing or customer's request
Delivery Time: 3 days in stock;within 25 days for order manufacture
Payment Terms: T/T;Western Union;Paypal;L/C
Detailed Product Description

Datasheet: Spherical Roller Bearing 239/500CA/W33

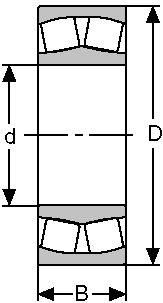

Dimensions (metric)/mm d 500
D 670
B 128
Limiting Speed(r/min) 950
Approx. Wgt. kg 130
Bearing with tapered bore 239/500CAK/W33
Raw Material(Inner&outer ring) Bearing Steel GCR15
Cage Material Brass
Cage Style CC;CA;MB

Double row spherical roller bearings 239/500 CA/W33            Double row spherical roller bearings 239/500 CA/W33               Double row spherical roller bearings 239/500 CA/W33

      Tapered Bore-1:12

This series is available in tapered bore - suffix "K" (taper 1:12).
1) Suffix "W/33" - lubrication groove and holes in outer ring.
2) C/3, C/4, and C/5 internal clearances are also available.

Unide Bearing supply spherical roller bearing 239/500CA/W33with good price.If you are demanding 239/500CA/W33,please do not hesitate to contact us.we will supply laest price for you.

Spherical Roller Bearings
1) Series: 21300 series, 22200 series, 22300 series, 23100 series, 23200series,
24000 series, 24100 series and 23900 series
2) Material of rings and rollers: chrome steel; GCr15 and GCr15SiMn
3) Material of cages: brass, steel and nylon
4) Precision: P0, P6
5) Suffixes:
a) CA: integral brass cage, double row symmetrical rollers, inner ring ride
b) MA: integral brass cage, double row symmetrical rollers, outer ring ride
c) MB: two piece brass cage, double row asymmetrical rollers, inner ring ride
d) CC: two piece steel cage, double row symmetrical rollers, inner ring ride
e) CTN1: double row symmetrical rollers, nylon cage
f) K: tapered bore bearing, the taper is 1:12
g) K30: tapered bore bearing, the taper is 1:30
h) W33: with lubrication groove in outer ring, with three oil holes
i) C2/C3/C4: Internal clearance series: C2, C0, C3, and C4
6) Application:
Used in agricultural machine such as combined harvesting machine, air-blower, paper-machine,
textile machine, woodworking machinery, overhead crane moving wheel and driving shaft
