Large size split spherical roller bearing 230SM420-MA

  • Large size split spherical roller bearing 230SM420-MA
Place of Origin China
Certification ISO9001
Model Number 230SM420-MA
Minimum Order Quantity 1
Packaging Details Industrial packing or customer's request
Delivery Time 5-7 days for stock number;within 30 days as order manufacture
Payment Terms T/T;Western Union;Paypal;L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Split spherical roller bearing 230SM420-MA,with bore diamater 410mm,outer diameter 720mm,width 315mm

Dimensions (metric)/mm d 420
D 650
C 157
B 235
Limiting Speed(r/min) 340
Bearing Model 230SM420-MA
Bearing Category spherical roller bearing
MA Split machined brass cage
Approx. Wgt. kg 246
Can replace unsplit bearings with adapter sleeve Bearing 23088K
Adapater Sleeve

AHX3088GH

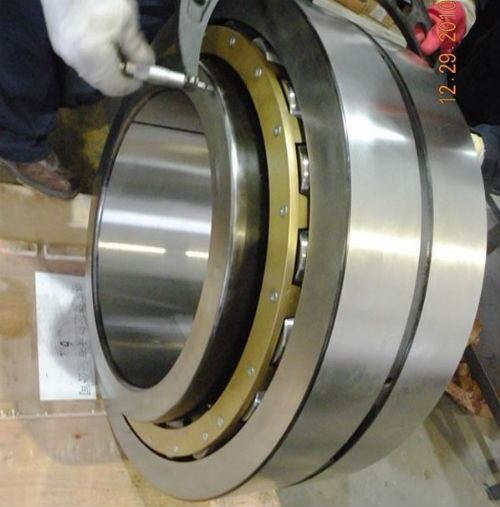

Large size split spherical roller bearing 230SM420-MA 0           Large size split spherical roller bearing 230SM420-MA 1

Split spherical roller bearings are primarily used for bearing positions which are difficult to access such as on long shafts which require support at several positions, or on cranked shafts.

Range of Applications:

belt drives/ships/conveyor plants/rolling mills/paper machines

The internal design of split spherical roller bearings:

Large size split spherical roller bearing 230SM420-MA 2

Large size split spherical roller bearing 230SM420-MA 3  Large size split spherical roller bearing 230SM420-MA 4
