75TAC110B ball screw support bearing,high precision bearings

  • 75TAC110B ball screw support bearing,high precision bearings
Place of Origin China
Brand Name Neutral or OEM
Certification ISO9001
Model Number 75TAC110B
Minimum Order Quantity 1
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 20days custom made
Payment Terms T/T;Western Union;Paypal;L/C
Supply Ability 20000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

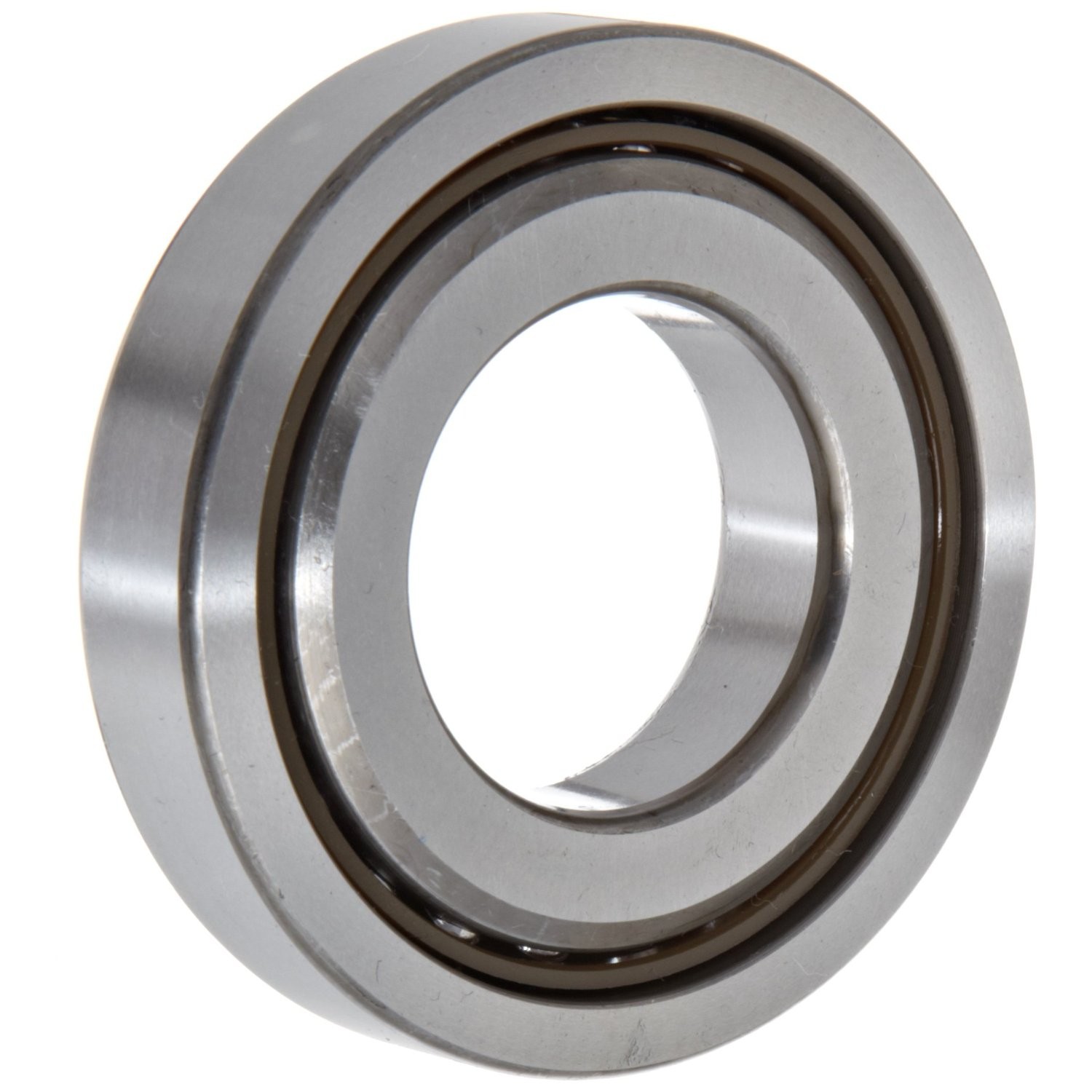

High precision ball screw support bearing 75TAC110B

angular contact thrust bal bearings, with contact angle α = 60°

75TAC110B ball screw support bearing,high precision bearings 075TAC110B ball screw support bearing,high precision bearings 1

Bearing Name Ball Screw Bearings 75TAC110B
Bearing Class Axial Angular Contact Ball Bearing
China Code BSB075110
FAG Code BS75110
Model 75TAC110B
d 70 mm
D 110 mm
B 15 mm
Weight 0.984 kg
Contact Angle  60°
Cage Polyamide Resin Cage
Tolerance P4/ABEC-7&P2/ABEC-9

Note:Sealed ball screw support bearings are available.

Features of the Bearings:

►High-precision angular contact thrust ball bearing supports ball screw units in machine tool applications

►Ball contact angle of 60 degrees relative to the inner and outer raceways increases thrust load capacity

►Open configuration for lubrication applied in place

►Polyamide resin retainer evenly spaces balls for reduced friction, vibration, and noise

►ISO class 4 tolerance rating for precise tool positioning and high rotational speeds

Unide Bearing is specialized in supplying ball screw support bearing 75TAC110B.This bearing is ued in machine part which support high rotating speed.Unide Bearing has a full range of ball screw support bearings,including 7602,7603,TAC,BS series.We have rich stock numbers for ball screw support bearings.Meanwhile,we distribute NTN NSK NACHI FAG TIMKEN bearings with attractive price.
