BCRB326392/HA1 bearing split cylindrical roller bearing,double row

I'm Online Chat Now

BCRB326392/HA1 bearing split cylindrical roller bearing,double row

China BCRB326392/HA1 bearing split cylindrical roller bearing,double row supplier

Large Image :  BCRB326392/HA1 bearing split cylindrical roller bearing,double row

Product Details:

Place of Origin: China
Brand Name: Neutral or OEM
Certification: ISO9001
Model Number: BCRB326392/HA1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Industrial packing or customer's request
Delivery Time: 5-7 days for stock number;within 30 days by order manufacture
Payment Terms: T/T;Western Union;Paypal
Contact Now
Detailed Product Description

BCRB326392/HA1 Split cylindrical roller bearing,double row

Bearing Type Cylindrical Roller Bearing
Bearing Structure Split
Bearing Model BCRB326392/HA1
Main Dimension(mm) d 500
D 635
B 340
C 260
Load Rating(kN) Dyn.Cr 2510
Sta.Cor 6800
Mass(kg) 270

Split cylindrical roller bearings
Split cylindrical roller bearings are mainly used in hard to reach the position of the crankshaft and integral bearings. Any piece cylindrical roller bearings in maintenance and very difficult to replace, and the equipment can not be shut down, shows its special superiority Pilger split cylindrical roller bearings.
Steel cold rolling mill crank, spine axis, excavators, mill drive spindle and large ventilation equipment is the main application areas.
Split double row cylindrical roller bearings, the original meters mill is mainly used for the transmission mechanism. Two half outer race mounted within the bearing housing after coupled together with each other, but also the child keys available to prevent its rotation. The split inner ring and between the bearing centerline forming an angle, so that the bearing is rotated smoothly, are coupled together with clamps. The brass cage Split roller positioning. Axial clearance to fit the changing requirements of the thermal expansion of the universal joint shaft length. Split cylindrical roller bearings Dimensions are not yet standardized.
Column and double row split cylindrical roller Order of car lll, between the roller and the raceway have a logarithmic curve contact, it can effectively improve the stress distribution of the inside of the bearing, and allowed 2 "tiny angle alignment errors. Split cylindrical roller car 111 Order of the production standard tolerance level, except for the inner ring, outer ring width tolerance. meet the standard tolerance values ISO492-1986
Split cylindrical roller bearings standard-level processing, its value meets ISO5753-1991.
Roll sub reduction in the number of its load capacity than the overall bearing small. subdivision reason for the split cylindrical roller bearings in the work will produce some vibration limit its speed capacity, about 50% of the overall bearing If this value is difficult to meet the equipment requirements of the user, For appropriate speed, consulting YHJT / YHE Technology Department and Technology Development Service Department.

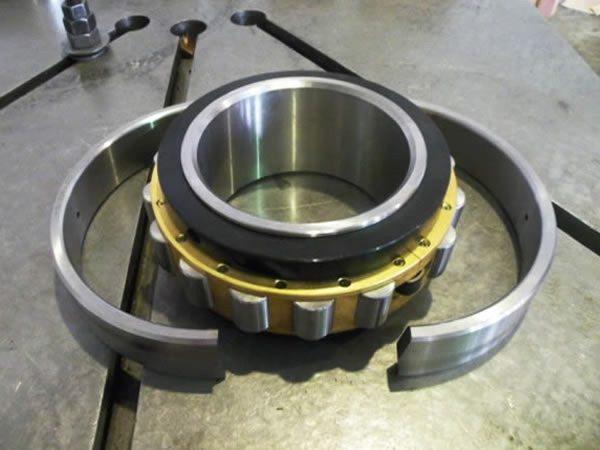

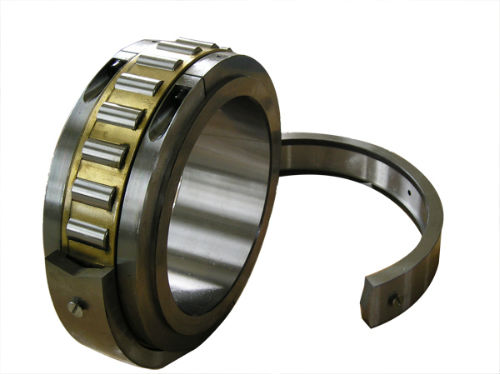

BCRB326392/HA1 bearing split cylindrical roller bearing,double rowBCRB326392/HA1 bearing split cylindrical roller bearing,double row

Main Dimension(mm) Load Ratings(kN) Bearing
d D B C Dynamic Static code
220 393.7 156 90.5 1210 1800 316350DA
240 440 156 90,5 1320 2040 319307 C
240 440 156 90,5 1320 2040 319307 A
240 440 156 90,5 1320 2040 319307 B
300 558,8 220 139,7 2330 3250 316733 DA
300 558,8 220 139,7 2330 3250 316733 DB
300 558,8 220 139,7 2330 3250 316733
300 558,8 220 139,7 2330 3250 316733 DC
300 558,8 220 139,7 2330 3250 316733 DD
300 558,87 220 139,7 2420 3450 BCSB 322810
318 622,37 272 160,4 2920 4400 BCSB 322213 CC
318 622,37 272 160,4 2920 4400 BCSB 322213 CD
318 622,37 272 160,4 2920 4400 BCSB 322213 CA
320 622,37 272 160,4 2920 4400 316351 CA
320 622,37 272 160,4 2920 4400 316351 CB
320 622,37 272 160,4 2920 4400 316351 CD
320 622,37 272 160,4 2920 4400 316351 CC
355,6 488,95 146 74,6 720 1220 BC1B 319605
400 600 220 148 2550 4900 BCS-8000
414 740 320 190 4020 6700 316352 CC
414 740 320 190 4020 6700 316352 CA
414 740 320 190 4020 6700 316352 CB
420 740 320 190 4020 6700 BC1B 319576 DA
500 850,9 360 210 5010 9000 316353 DA
500 850,9 360 210 5010 9000 316353 DB
500 850,9 360 210 5010 9000 316353 DC
500 850,9 360 210 5010 9000 316353 DD
580 750 160 90 1190 2280 BC1M 580-319470
630 794 190 88 1760 4300 BCSB 316283 A
749,92 920 165 78 1680 4050 BCSB 320861
900 1090 150 85 1720 4250 BCSB 316586
1000 1220 170 100 2700 6400 BCSB 320099
1120 1360 210 106 3140 7650 BCSB 320806
1120 1360 210 106 3140 7650 BCSB 320806A
1400 1700 225 132 4950 13200 BCSB 320240
