NN3006K/SP cylindrical roller bearings 30x55x19mm

I'm Online Chat Now

NN3006K/SP cylindrical roller bearings 30x55x19mm

China NN3006K/SP cylindrical roller bearings 30x55x19mm supplier

Large Image :  NN3006K/SP cylindrical roller bearings 30x55x19mm

Product Details:

Place of Origin: China
Certification: ISO9001
Model Number: NN3006K/SP

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: ASK
Packaging Details: Industrial
Delivery Time: 3-5 days for stocks;within 15days by order producing
Payment Terms: T/T;L/C;Western Union;Paypal
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P5;P4 Seals Type: None
Number Of Row: Double Row

Cylindrical roller bearings,double row,NN series,tapered bore 1:12,separable,with cage

Bearing No.NN3006K/SPNN3006K/SP cylindrical roller bearings 30x55x19mm
Main Dimensionmm
Inside Dia-d30
Outside Dia-D55
Width-B19
Mass(kg)0.191
OEM ServiceYes
Bearing NameDouble row cylindrical roller bearings
CageM-Brass
ClearanceC0;C2;C3;C4
ToleranceP5;P4
StructureCylindrical
InterchangeSKF
FAGNN3006-AS-K-M-SP
NTN
NSK
KOYO


 NN3006K/SP cylindrical roller bearings 30x55x19mm

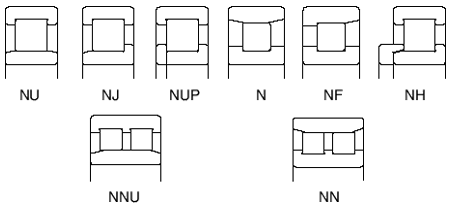

Cylindrical roller bearings without outer ring capped edge

The NU cylindrical roller bearing has double capped edges on outer ring and without capped edge on inner ring
The N cylindrical roller bearing has double capped edges on inner ring and without capped edge on outer ring
The NU and N cylindrical roller bearings, the shaft is allowed two-way displacement toward the bearing box, i.e. the cylindrical roller bearings can bear the change of shaft length due to thermal expansion. Thus It is suitable to serve as a non-fixed bearing. It can bear larger radial load, but cannot take axial load.

Cylindrical roller bearings with capped edge on both outer ring and inner
The NJ cylindrical roller bearing has double capped edge on outer ring and single capped edge on inner ring.
The NF cylindrical roller bearing with the single capped edge on outer ring & double capped edges on inner ring
The NJ & NF cylindrical roller bearing, the axial-displacement of the shaft or housing on one-direction can be limited. The one-direction axial positioning can be reached. It can burden smaller axial load from one-direction.
The NUP cylindrical roller bearing with double capped edges on the outer ring & with capped edge on one side of the inner ring, as well as with inner ring loose rib on the other side of the inner ring. The two-way axial positioning toward the shaft can be reached. The bearing can bear two-way axial force. The NUP & N cylindrical roller bearings can be chosen for the structure. The NJ and HJ cylindrical roller bearing with separate thrust collar is similar to the NUP cylindrical roller bearing, it can be used as the fixed (positioning) bearing.

Cylindrical roller bearings without inner ring or without outer ring
The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.
The RNU and RN cylindrical roller bearing are used with a component having a limitation on radial dimension. The axial journal or the surface of the housing bore can be used as the raceways. The hardness and the machining precision as well as the surface quality should be same as the raceways of the inner ring and the outer ring.

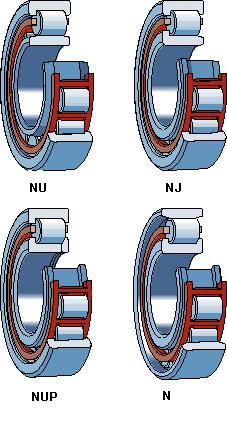

Single row cylindrical roller bearing NU,NJ,NUP,N designsNN3006K/SP cylindrical roller bearings 30x55x19mm
NN3006K/SP cylindrical roller bearings 30x55x19mmDouble row cylindrical roller bearings,NN and NNU designs
NN3006K/SP cylindrical roller bearings 30x55x19mmSingle row full complement cylindrical roller bearing,NCF and NJG designs
NN3006K/SP cylindrical roller bearings 30x55x19mmDouble row full complement cylindrical roller bearing,NNF design
NN3006K/SP cylindrical roller bearings 30x55x19mmFour row cylindrical roller bearing
NN3006K/SP cylindrical roller bearings 30x55x19mmSix row cylindrical roller bearing
