Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cage

I'm Online Chat Now

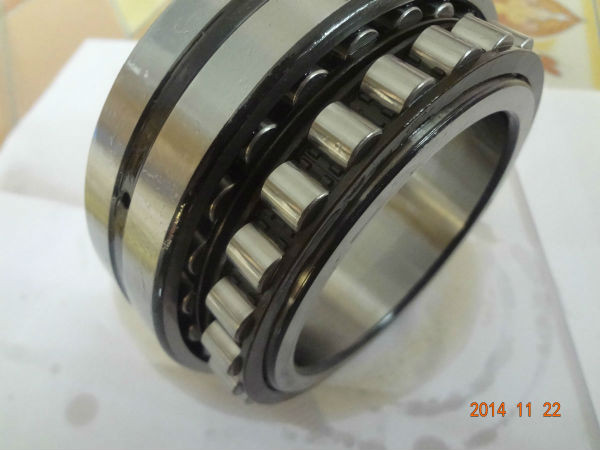

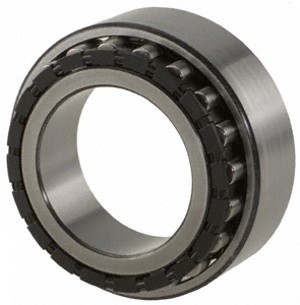

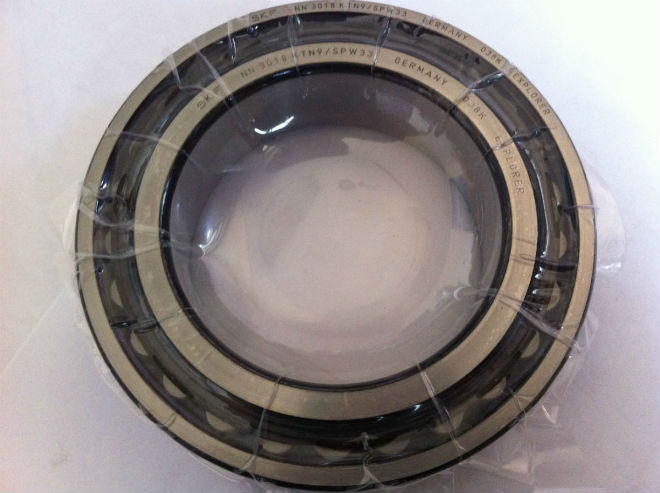

Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cage

China Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cage supplier
Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cage supplier Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cage supplier Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cage supplier

Large Image :  Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cage

Product Details:

Place of Origin: China
Certification: ISO9001
Model Number: NN3016KTN/SP

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: ASK
Packaging Details: Industrial
Delivery Time: 3-5 days for stocks;within 15days by order producing
Payment Terms: T/T;L/C;Western Union;Paypal
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description

Cylindrical roller bearings,double row,NN series,taper bore,separable,with cage

Bearing No. NN3016KTN/SP Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cage
Main Dimension mm
Inside Dia-d 80
Outside Dia-D 125
Width-B 34
Mass(kg) 1.5
OEM Service Yes
Bearing Name Double row cylindrical roller bearings
Cage Brass
Clearance C2;C3;C4
Tolerance P5;P4;P2
Structure Cylindrical
Designation - Cylindrical bore (no designation suffix)
K Tapered bore,taper 1:12
- Machined brass cage(no designation suffix)
TN PA66 cage,roller centered
TN9 Glass fibre reinforced PA66 cage, roller centred
SP Dimensional accuracy in accordance with ISO tolerance class 5, running accuracy in accordance with ISO tolerance class 4
UP Dimensional accuracy in accordance with ISO tolerance class 4, running accuracy better than ISO tolerance class 4
W33 Annular groove and three lubrication holes in the outer ring
W33X Annular groove and six lubrication holes in the outer ring
Interchange SKF NN3016KTN/SP
FAG
NTN
NSK
KOYO


 Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cage

Cylindrical roller bearings without outer ring capped edge

The NU cylindrical roller bearing has double capped edges on outer ring and without capped edge on inner ring
The N cylindrical roller bearing has double capped edges on inner ring and without capped edge on outer ring
The NU and N cylindrical roller bearings, the shaft is allowed two-way displacement toward the bearing box, i.e. the cylindrical roller bearings can bear the change of shaft length due to thermal expansion. Thus It is suitable to serve as a non-fixed bearing. It can bear larger radial load, but cannot take axial load.

Cylindrical roller bearings with capped edge on both outer ring and inner
The NJ cylindrical roller bearing has double capped edge on outer ring and single capped edge on inner ring.
The NF cylindrical roller bearing with the single capped edge on outer ring & double capped edges on inner ring
The NJ & NF cylindrical roller bearing, the axial-displacement of the shaft or housing on one-direction can be limited. The one-direction axial positioning can be reached. It can burden smaller axial load from one-direction.
The NUP cylindrical roller bearing with double capped edges on the outer ring & with capped edge on one side of the inner ring, as well as with inner ring loose rib on the other side of the inner ring. The two-way axial positioning toward the shaft can be reached. The bearing can bear two-way axial force. The NUP & N cylindrical roller bearings can be chosen for the structure. The NJ and HJ cylindrical roller bearing with separate thrust collar is similar to the NUP cylindrical roller bearing, it can be used as the fixed (positioning) bearing.

Cylindrical roller bearings without inner ring or without outer ring
The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.
The RNU and RN cylindrical roller bearing are used with a component having a limitation on radial dimension. The axial journal or the surface of the housing bore can be used as the raceways. The hardness and the machining precision as well as the surface quality should be same as the raceways of the inner ring and the outer ring.

Single row cylindrical roller bearing NU,NJ,NUP,N designsSuper precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cage
Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cageDouble row cylindrical roller bearings,NN and NNU designs
Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cageSingle row full complement cylindrical roller bearing,NCF and NJG designs
Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cageDouble row full complement cylindrical roller bearing,NNF design
Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cageFour row cylindrical roller bearing
Super precision double row cylindrical roller bearing NN3016KTN/SP,with nylon cageSix row cylindrical roller bearing
