SKF single row cylindrical roller bearing with ID 170mm,OD 360 mm,Width 72 mm,NU334ECM

SKF single row cylindrical roller bearing with ID 170mm,OD 360 mm,Width 72 mm,NU334ECM

China SKF single row cylindrical roller bearing with ID 170mm,OD 360 mm,Width 72 mm,NU334ECM supplier

Large Image :  SKF single row cylindrical roller bearing with ID 170mm,OD 360 mm,Width 72 mm,NU334ECM

Product Details:

Place of Origin: Germany
Brand Name: SKF
Model Number: NU334ECM

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: USD1-1000/pcs

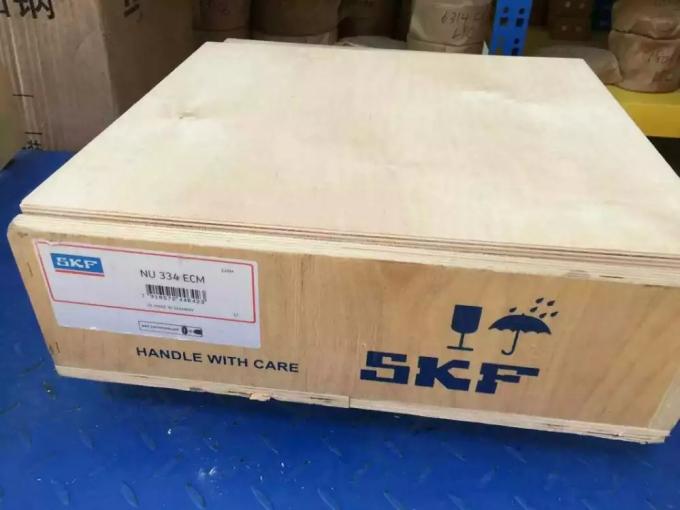

Packaging Details: Wooden case
Delivery Time: 1-3 working days
Payment Terms: T/T, Western Union
Detailed Product Description
ID: 170 Mm OD: 360 Mm
B: 72 Mm

NU 334 ECM

-Cylindrical roller bearing,single row



Dimensions

d   170 mm
D   360 mm
B   72 mm
D1 300.45 mm
F   218 mm
r1,2 min. 4 mm
r3,4 min. 4 mm
s max. 4.6 mm

Abutment dimensions

da min. 187 mm
da max. 213 mm
db min. 221 mm
Da max. 341.6 mm
ra max. 3 mm
rb max. 3 mm

Calculation data

Basic dynamic load rating C   952 kN
Basic static load rating C0   1180 kN
Fatigue load limit Pu   116 kN
Reference speed     1700 r/min
Limiting speed     2200 r/min
Calculation factor kr   0.15



Mass bearing     37.639 kg

SKF single row cylindrical roller bearing with ID 170mm,OD 360 mm,Width 72 mm,NU334ECMSKF single row cylindrical roller bearing with ID 170mm,OD 360 mm,Width 72 mm,NU334ECM
