BD130-1SA excavator bearing with double row(130*166*34)

I'm Online Chat Now

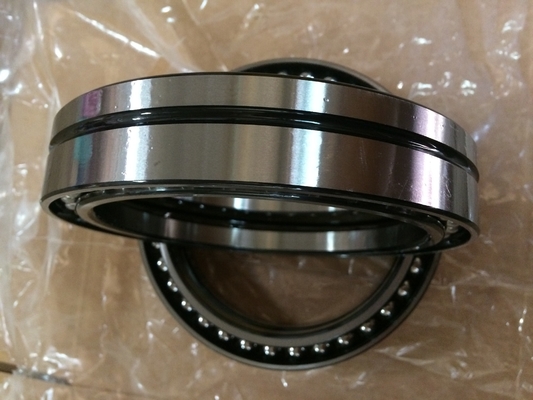

BD130-1SA excavator bearing with double row(130*166*34)

China BD130-1SA excavator bearing with double row(130*166*34) supplier
BD130-1SA excavator bearing with double row(130*166*34) supplier BD130-1SA excavator bearing with double row(130*166*34) supplier BD130-1SA excavator bearing with double row(130*166*34) supplier

Large Image :  BD130-1SA excavator bearing with double row(130*166*34)

Product Details:

Place of Origin: China
Brand Name: Neutral or OEM
Certification: ISO9001
Model Number: BD130-1SA

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: USD1--40 per pcs
Packaging Details: Industrial packing or customer's request
Delivery Time: 1-3 days for ready goods
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description

Excavator bearings BD130-1SA,

Type:angular contact ball bearing,multi row,thrust(contact angle<45),complete(130x166x34)

BD130-1SA excavator bearing:

Main dimensions
d mm⁄inch D mm⁄inch T mm⁄inch B mm⁄inch Mass kg⁄lb
130 166 34 29.5 1.451
5.1181 6.5355 1.3386 1.1614 3.199

BD130-1SA excavator bearing with double row(130*166*34)   BD130-1SA excavator bearing with double row(130*166*34)

Products images were taken in kind,all reserved,copy reserved!

Excavator bearing overview:

This kind of bearings are mianly used for excavator machinery.It is thin ring angular contact ball bearing. This kind of angular contact ball bearing has big contact angle(40 degree),so can under take big axial load ,and aslo axial radial allied load .Moreover it can carry heavier load capacity than the same size bearings because it has more balls inside .It is widely used for all imported exavator.

Excavator bearing installation:

Excavator bearing installation and removal methods, should be according to the excavator bearing structure, size and excavator bearing parts with the nature.Installation, disassembly pressure should be directly added to the end face of tight fit excavator bearing stalls circle, not by the excavator bearing rolling elements to transmit pressure, because this will be caused by the excavator bearing work surface indentation, impact excavator bearing normal workeven make excavator bearing damage. Excavator bearing cage, seals, dust cover parts easily deformed, installation or demolition excavator bearing pressure can not be added to these parts.

NTN KOYO NSK BEARING NO. d D B
    BA152-2036   15 203 26
    BA222-1WSA   222 273 26
    BA220-6SA   220 276 26
    BA240-3ASA   240 310 33.5
SF4615PX1       230 300 35
SF4815VPX1     SF4815VPX1 240 310 34
SF4831PX1     SF4831PX1 240 310 33.4
  AC5033   AC5033 250 330 37
  AC5836   AC5836 289 355 34
  AC463240   AC463240 230 320 40
      HS05145 117 145 14
      HS05154 126 154 14
      HS05383 320 383 30
      MC6034 300 340 18
      180BA-2256 180 225 22
      B-SF4454PX1 220 295 33
    BA260-4   260 340 38
  AC4629   AC4629 230 290 27
    BA230-7ASA   230 300 35
SF3607     SF3607 180 225 15
    BA180-4WSA   180 250 33
  AC4531   AC4531 225 315 36
  AC4631   AC4631 230 310 39
    BA4852PX1   240 310 33
      R196Z-4 196.85 241.3 17.462/23.812
  AC463240   AC463240 230 320 40
      180N19W 180 250 33
      200BA27V-2 200 270 33
      210BA29V 210 295 35
  AC423040-1   AC423040-1 210 300 40
  AC4630   AC4630 230 300 35
    BA280-2SA   280 370 40
    BA300-4WSA   300 395 50
    BD130-1SA   130 166 34
      BN220-1 220 280 28
      CR4411PX1 220 290 32
      CR6016PX1 300 380 38
SF2812PX1     SF2812PX1 140 175 17.5
SF3227PX1     SF3227PX1 160 200 20
SF4007PX1     SF4007PX1 200 250 25
SF4019PX1     SF4019PX1 200 260 30
