PLC58-6 spherical roller bearing for mobile cement mixer gearboxes

  • PLC58-6 spherical roller bearing for mobile cement mixer gearboxes
Model Number PLC58-6
Minimum Order Quantity 1
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 20 days for order manufacture
Payment Terms T/T;Western Union;Paypal
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

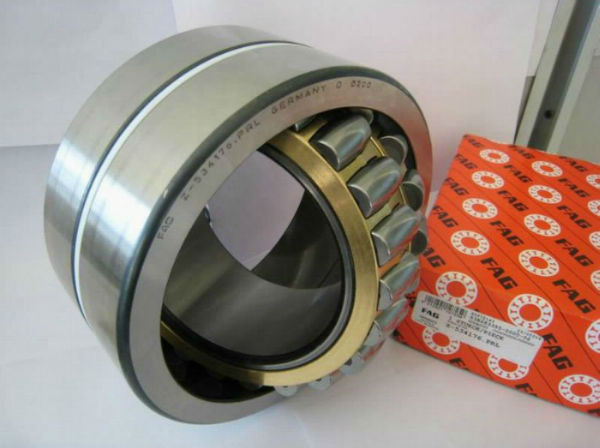

PLC58-6 spherical roller bearing for mobile cement mixer gearboxes

Bearing Model PLC58-6
Brand FAG ZKL ZVL
Bearing Category Spherical Roller Bearing
d 100 mm
D 150 mm
B 62 mm
Dynamic Load 310 kN
Static Load 550 kN
Mass 3.7 kg

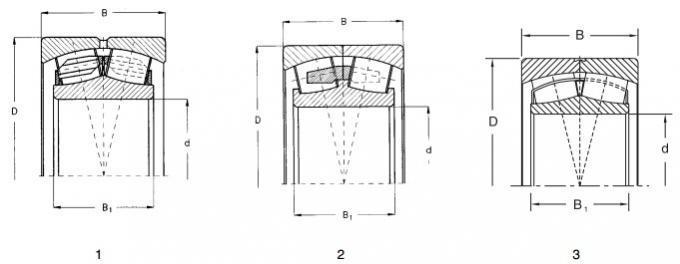

Figure 1

PLC58-6 spherical roller bearing for mobile cement mixer gearboxes 0

The following bearings are designed for use in mobile cement mixer gearboxes. The bearings are mounted onto the main shaft of the gearbox and are offered in three basic designs: PLC 58-6, PLC 59-5, and PLC 59-10, all have awider outer ring, increasing the self-aligning ability of the bearing. These bearings are produced within ABEC 1 tolerance and have a C0 radial clearance.

The PLC 59-5 has a two-piece brass cage, which allows a higher operating temperature than other plastic cage
designs. The brass cage also offers complete compatibility with all synthetic lubricants.

The PLC 59-10 also has a two-piece brass cage and offers all the same design advantages as the PLC 59-5. This
bearing also has a high capacity design, which increases the dynamic and static load ratings. Both PLC 59-5 and
PLC 59-10 have a two-piece split outer ring, which allows for maximum rollers and a narrower inner ring.

The PLC 58-6 has a polyamide cage, which allows the bearing to be assembled so that the outer ring does not have
to be split into two pieces.
