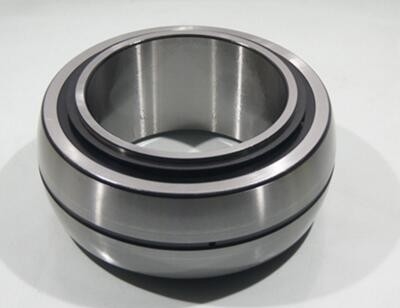

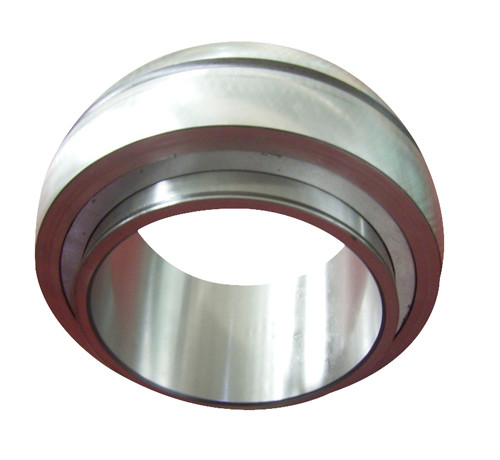

SL06016E cylindrical roller bearing with spherical outside surface,full complement,double row
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSeals Type | Open | Number Of Row | Double Row |
---|---|---|---|
Material | Bearing Steel GCR15 | Clearance | Normal |
SL06016E bearing specifications:
INA No. | Boundary Dimensions(mm) | Basic loading(KN) | Limiting Speed(r/min) | Mass(KG) | ||||||
d | D | B | C | rsmin | s | Dyn. | Sta. | |||
SL06016E | 80 | 120 | 45 | 55 | 1.1 | 2.5 | 172 | 300 | 1300 | 1.8 |
Structure:
Full complement cylindrical roller bearings have three main parts – the inner ring equipped with flanges, cylindrical rollers and the outer ring. According to the arrangement, snap rings, angle ring or seals are added.
NCF
These are the most common full complement cylindrical roller bearings. The inner ring has two flanges, the outer ring has one flange on one side and a snap ring, which keeps the bearing assembled on the other side. NCF bearings are able to carry axial load from one side a they are able to accommodate certain minor axial displacement of the shaft. The
permissible values for this displacement are in the dimension tables.
Double row bearings
Double row full complement cylindrical roller bearings are all supplied with a lubrication groove with holes in the outer ring, which enables full lubrication access into the rolling space of each row of cylindrical rollers. The inner ring of the NNC, NNCL and NNCF design has three guiding flanges to ensure guiding accuracy of cylindrical rollers. They differentiate by the number of guiding flanges and snap rings in the outer ring. These components stop the rolling elements from falling out.
NNC
One side of outer ring is equipped with guiding flange, the other side has snap ring to keep the cylindrical rollers in place. These bearings can carry the axial load in both directions.
NNCL
NNCL bearings have the flangeless outer ring therefore certain axial bearing rings displacement against each other is accommodated.
NNCF
The outer ring has one flange and one snap ring. These components accommodate axial load transfer in one direction and also certain shaft displacement of the housing.
NNF
NNF bearings are produced with guiding flanges in the two-piece inner ring, which is held together by a retaining ring. The outer ring has a guiding flange. These bearings can also carry the axial load in both directions and as per bigger distance between individual rows of cylindrical rollers, they can transfer a tilting moments.
The outer ring of an NNF bearing is 1 mm narrower than the inner ring and has two snap ring grooves. These bearings are supplied as standard with seals on both sides and the inner space is filled with grease to enable the bearing operation in standard working conditions up to 110°C.

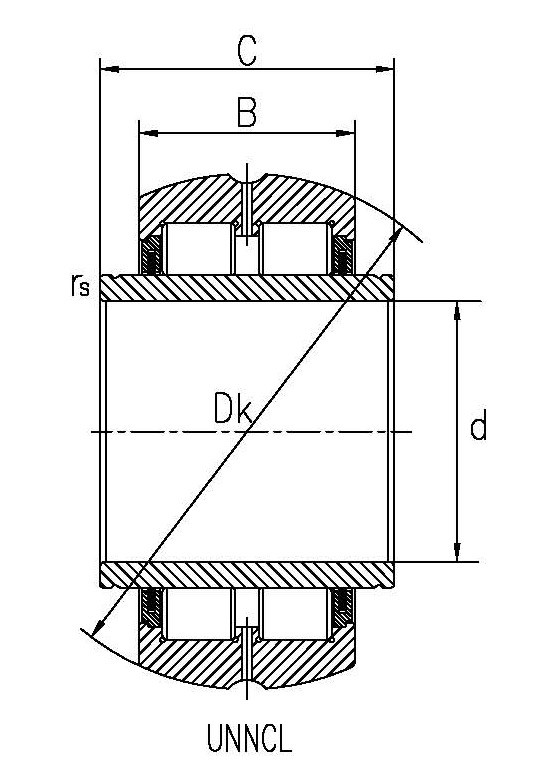

Locating bearing | Non-Locating bearings | Weight (kg) | Dimensions (mm) | Installation dimensions d1 | |||||
d | K ball diameter | B/C | B1 | rs | S1 | ||||
SL05016 E | 1.7 | 80 | 120 | 45 | 1.1 | 94 | |||
SL06016 E | 1.8 | 80 | 120 | 45 | 55 | 1.1 | 2.5 | 88 | |
SL05018 E | 2.8 | 90 | 140 | 50 | 1.5 | 106 | |||
SL06018 E | 2.95 | 90 | 140 | 50 | 60 | 1.5 | 2.5 | 100 | |
SL05020 E | 3.3 | 100 | 150 | 55 | 1.5 | 116 | |||
SL06020 E | 3.45 | 100 | 150 | 55 | 65 | 1.5 | 2.5 | 110 | |
SL05022 E | 4.9 | 110 | 170 | 60 | 2 | 130 | |||
SL06022 E | 5.2 | 110 | 170 | 60 | 75 | 2 | 5 | 124 | |
SL05024 E | 5.2 | 120 | 180 | 60 | 2 | 138 | |||
SL06024 E | 5.5 | 120 | 180 | 60 | 75 | 2 | 5 | 132 | |
SL05026 E | 7.4 | 130 | 200 | 65 | 2 | 154 | |||
SL06026 E | 7.8 | 130 | 200 | 65 | 80 | 2 | 5 | 146 | |
SL05028 E | 8.2 | 140 | 210 | 70 | 2 | 160 | |||
SL06028 E | 8.55 | 140 | 210 | 70 | 85 | 2 | 5 | 152 | |
SL05030 E | 10 | 150 | 225 | 75 | 2.1 | 175 | |||
SL06030 E | 10.5 | 150 | 225 | 75 | 90 | 2.1 | 5 | 166 | |
SL05032 E | 13.7 | 160 | 240 | 90 | 2.1 | 184 | |||
SL06032 E | 14.3 | 160 | 240 | 90 | 110 | 2.1 | 7.5 | 175 | |
SL05034 E | 17.4 | 170 | 260 | 95 | 2.1 | 196 | |||
SL06034 E | 18.1 | 170 | 260 | 95 | 115 | 2.1 | 7.5 | 186 | |
SL05036 E | 22.1 | 180 | 280 | 100 | 2.1 | 210 | |||
SL06036 E | 23 | 180 | 280 | 100 | 120 | 2.1 | 7.5 | 200 | |
SL05038 E | 25.1 | 190 | 290 | 110 | 2.1 | 222 | |||
SL06038 E | 26.5 | 190 | 290 | 110 | 135 | 2.1 | 10 | 212 | |
SL05040 E | 30.5 | 200 | 310 | 115 | 2.1 | 234 | |||
SL06040 E | 32 | 200 | 310 | 115 | 140 | 2.1 | 10 | 222 | |
SL05044 E | 40 | 220 | 340 | 125 | 3 | 262 | |||
SL06044 E | 42 | 220 | 340 | 125 | 150 | 3 | 10 | 248 | |
SL05048 E | 44 | 240 | 360 | 130 | 3 | 278 | |||
SL06048 E | 46 | 240 | 360 | 130 | 155 | 3 | 10 | 266 |
Unide Bearing is a leading supplier of full complement cylindrical roller bearings.Its products are manufactured with high-grade technology to guarantee the excellent performance in the usage.we supply single row,double row,three row full complement cylindrical roller bearings with open and sealed types.
