NU320 cylindrical roller bearing,single row,ABEC-1,100x215x47

I'm Online Chat Now

NU320 cylindrical roller bearing,single row,ABEC-1,100x215x47

China NU320 cylindrical roller bearing,single row,ABEC-1,100x215x47 supplier

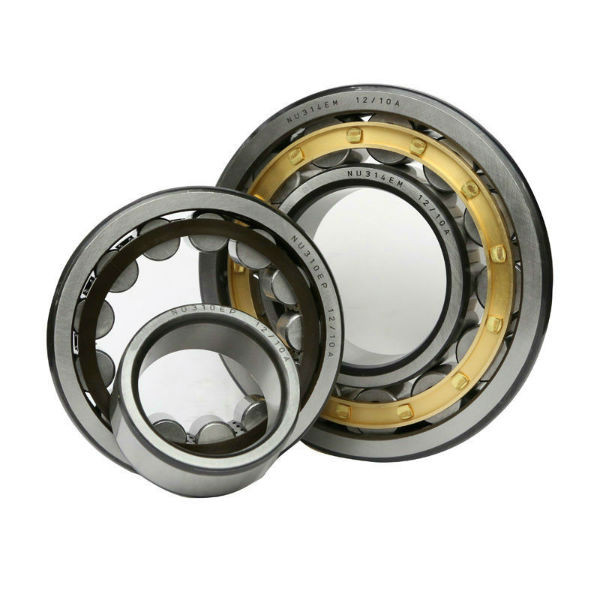

Large Image :  NU320 cylindrical roller bearing,single row,ABEC-1,100x215x47

Product Details:

Place of Origin: China
Brand Name: Neutral or OEM
Model Number: NU320

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Industrial packing or customer's request
Delivery Time: 3 days for stock numbers;within 20 days by order manufacturing
Payment Terms: T/T;Western Union;Paypal
Contact Now
Detailed Product Description



Model No. NU320
Inside Dia 100 mm
Outside Dia 215 mm
Width 47 mm
Mass 7.45
Basic dynamic load rating, radial 450
Basic static load rating, radial 440
Limiting speed,Grease lub 3200
Limiting speed,Oil lub 3800
Brand Available  FAG TIMKEN NSK NTN KOYO NACHI
Cage Pressed steel&Machined brass&Molded polyamide
Structure NU;NJ;NUP;NF;N

NU Series Cylindrical Roller Bearing

NU320 cylindrical roller bearing,single row,ABEC-1,100x215x47

NU320 cylindrical roller bearing,single row,ABEC-1,100x215x47

Cylindrical roller bearings without outer ring capped edge

The NU cylindrical roller bearing has double capped edges on outer ring and without capped edge on inner ring
The N cylindrical roller bearing has double capped edges on inner ring and without capped edge on outer ring
The NU and N cylindrical roller bearings, the shaft is allowed two-way displacement toward the bearing box, i.e. the cylindrical roller bearings can bear the change of shaft length due to thermal expansion. Thus It is suitable to serve as a non-fixed bearing. It can bear larger radial load, but cannot take axial load.

Cylindrical roller bearings with capped edge on both outer ring and inner
The NJ cylindrical roller bearing has double capped edge on outer ring and single capped edge on inner ring.
The NF cylindrical roller bearing with the single capped edge on outer ring & double capped edges on inner ring
The NJ & NF cylindrical roller bearing, the axial-displacement of the shaft or housing on one-direction can be limited. The one-direction axial positioning can be reached. It can burden smaller axial load from one-direction.
The NUP cylindrical roller bearing with double capped edges on the outer ring & with capped edge on one side of the inner ring, as well as with inner ring loose rib on the other side of the inner ring. The two-way axial positioning toward the shaft can be reached. The bearing can bear two-way axial force. The NUP & N cylindrical roller bearings can be chosen for the structure. The NJ and HJ cylindrical roller bearing with separate thrust collar is similar to the NUP cylindrical roller bearing, it can be used as the fixed (positioning) bearing.

Cylindrical roller bearings without inner ring or without outer ring
The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.
The RNU and RN cylindrical roller bearing are used with a component having a limitation on radial dimension. The axial journal or the surface of the housing bore can be used as the raceways. The hardness and the machining precision as well as the surface quality should be same as the raceways of the inner ring and the outer ring.

Single row cylindrical roller bearing NU,NJ,NUP,N designsNU320 cylindrical roller bearing,single row,ABEC-1,100x215x47
NU320 cylindrical roller bearing,single row,ABEC-1,100x215x47Double row cylindrical roller bearings,NN and NNU designs
NU320 cylindrical roller bearing,single row,ABEC-1,100x215x47Single row full complement cylindrical roller bearing,NCF and NJG designs
NU320 cylindrical roller bearing,single row,ABEC-1,100x215x47Double row full complement cylindrical roller bearing,NNF design
NU320 cylindrical roller bearing,single row,ABEC-1,100x215x47Four row cylindrical roller bearing
NU320 cylindrical roller bearing,single row,ABEC-1,100x215x47Six row cylindrical roller bearing
