Cylindrical roller bearing NU332,160x340x68,single row,brass cage

Place of Origin China
Brand Name Neutral or OEM
Model Number NU332
Minimum Order Quantity 1
Packaging Details Industrial packing or customer's request
Delivery Time 3 days for stock numbers;within 20 days by order manufacturing
Payment Terms T/T;Western Union;Paypal

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

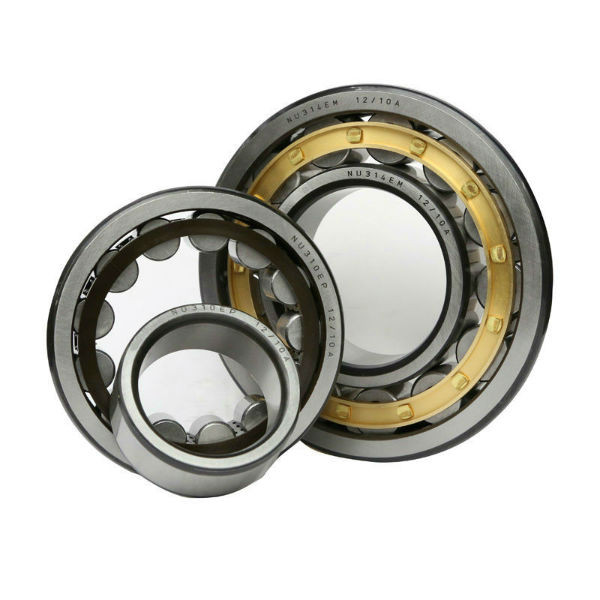

Model No.NU332Cylindrical roller bearing NU332,160x340x68,single row,brass cage 0
Inside Dia160 mm
Outside Dia340 mm
Width68 mm
Mass31
OEM Service FAG TIMKEN NSK NTN KOYO NACHI
CageMachined brass
StructureNU;NJ

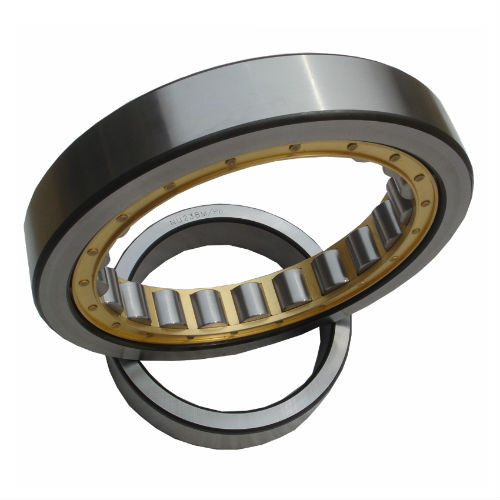

Cylindrical roller bearing NU332,160x340x68,single row,brass cage 1

Cylindrical roller bearings without outer ring capped edge

The NU cylindrical roller bearing has double capped edges on outer ring and without capped edge on inner ring
The N cylindrical roller bearing has double capped edges on inner ring and without capped edge on outer ring
The NU and N cylindrical roller bearings, the shaft is allowed two-way displacement toward the bearing box, i.e. the cylindrical roller bearings can bear the change of shaft length due to thermal expansion. Thus It is suitable to serve as a non-fixed bearing. It can bear larger radial load, but cannot take axial load.

Cylindrical roller bearings with capped edge on both outer ring and inner
The NJ cylindrical roller bearing has double capped edge on outer ring and single capped edge on inner ring.
The NF cylindrical roller bearing with the single capped edge on outer ring & double capped edges on inner ring
The NJ & NF cylindrical roller bearing, the axial-displacement of the shaft or housing on one-direction can be limited. The one-direction axial positioning can be reached. It can burden smaller axial load from one-direction.
The NUP cylindrical roller bearing with double capped edges on the outer ring & with capped edge on one side of the inner ring, as well as with inner ring loose rib on the other side of the inner ring. The two-way axial positioning toward the shaft can be reached. The bearing can bear two-way axial force. The NUP & N cylindrical roller bearings can be chosen for the structure. The NJ and HJ cylindrical roller bearing with separate thrust collar is similar to the NUP cylindrical roller bearing, it can be used as the fixed (positioning) bearing.

Cylindrical roller bearings without inner ring or without outer ring
The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.
The RNU and RN cylindrical roller bearing are used with a component having a limitation on radial dimension. The axial journal or the surface of the housing bore can be used as the raceways. The hardness and the machining precision as well as the surface quality should be same as the raceways of the inner ring and the outer ring.

Single row cylindrical roller bearing NU,NJ,NUP,N designsCylindrical roller bearing NU332,160x340x68,single row,brass cage 2
Cylindrical roller bearing NU332,160x340x68,single row,brass cage 3Double row cylindrical roller bearings,NN and NNU designs
Cylindrical roller bearing NU332,160x340x68,single row,brass cage 4Single row full complement cylindrical roller bearing,NCF and NJG designs
Cylindrical roller bearing NU332,160x340x68,single row,brass cage 5Double row full complement cylindrical roller bearing,NNF design
Cylindrical roller bearing NU332,160x340x68,single row,brass cage 6Four row cylindrical roller bearing
Cylindrical roller bearing NU332,160x340x68,single row,brass cage 7Six row cylindrical roller bearing
