Four row cylindrical roller bearing FC4054170 for rolling mills

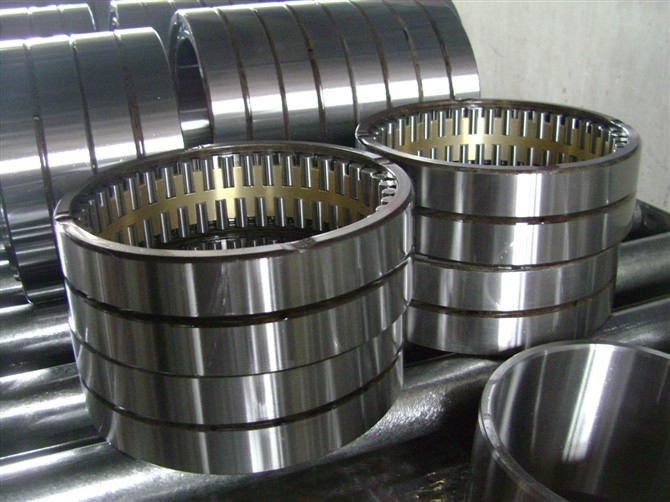

: Large Image : Four row cylindrical roller bearing FC4054170 for rolling mills

Product Details:

Place of Origin:	China
Brand Name:	Neutral or OEM
Certification:	ISO9001
Model Number:	FC4054170

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Industrial packing or customer's request
Delivery Time:	3 days in stock;within 20days custom made
Payment Terms:	T/T;Western Union;Paypal;L/C
Supply Ability:	5000 pcs/month

Contact Now

Detailed Product Description

Four Row Cylindrical Roller Bearing FC4054170

Bearing name:	FC4054170 bearings
New Model:	FC4054170
bearing:	314553
NTN bearing:	4R4039
d :	200mm
D :	270mm
B :	170mm
Fw :	222mm
Load Rating(kN)
Dyn.C	1170
Stat Co	2580
Weight(kg)	28.5
Bearing class:	Cylindrical Roller Bearings, Four Row
Remarks:	Please contact us for other detail
Bearing Inventory	300 pcs

Order Information:

1.complete set FC4054170(one single inner ring&double outer ring assembly)

2.separate inner ring and separate outer ring assembly are also available.

3.we have 400 pcs inner ring of FC4054170 in stock.

Four row cylindrical roller bearing FC4054170 for rolling mills

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.

Bearing No	Dimension(mm)	Basic Loading(kN)		Mass(kg)
Bearing No	dxDxB	Dyn.(Cr)	Stat.(Cor)	Mass(kg)
FC2640125	130x200x125	530	1200	14.6
FC3045120	150x225x120	702	1408	16.2
FC3246130	160x230x130	665	1705	16.9
FC3248124	160x240x124	685	1530	20.3
FC3248168	160x240x168	1042	2310	26.7
FCD3446160	170x230x160	1100	2360	20
FC3452120	170x260x120	660	1790	24.6
FC3652124	180x260x124	735	1730	21.7
FC3652168	180x260x168	1070	2790	30.2
FC3652168/YA3	180x260x168	1070	2790	30.1
FC3854168	190x270x168	950	2430	30.2
FC3854168/YA3	190x270x168	950	2430	29.9
FC3854170/YA3	190x270x200	950	2430	30.2
FC4056188	200x290x192	985	2580	35.7
FC4462192/YA3	220x310x192	1300	1910	45.8
FC4462225	220x320x210	1450	4050	53.9
FC4666206/YA3	230x330x206	1350	3800	56.5
FC4866220/YA3	240x330x220	1620	4850	56.5
FC4866220	240x330x220	1620	4850	56.7
FC4872220	240x360x200	1700	4410	78
FC4872220A/C4YA3	240x360x200	1700	4410	78
FC5072220/YA3	250x360x220	1500	4250	76.9
FC5274200	260x370x200	1570	4250	73
FC5274220/YA3	260x370x220	1760	4900	79.2
FC5274220	260x370x220	1760	4900	80
FC5476230/YA3	270x380x230	1720	4800	80.2
FC5478230	270x390x236	2100	5950	97.8
FC5678220	280x390x220	1790	5150	86.5
FCDP5678275	280x390x275	2200	6250	102
FC6490240/YA3	320x450x240	2460	6720	119
FCD72102370	360x510x370	3850	11400	220
FCDP74104380	370x520x380	3900	12000	296
FCDP88124450	440x620x450	5200	15800	452
FCDP88124450/YA6	440x620x450	5200	15800	452
FCD96130450	480x650x450	4750	15400	419
