Four row cylindrical roller bearing FC6890250
Place of Origin | China |
---|---|
Brand Name | Neutral or OEM |
Certification | ISO9001 |
Model Number | FC6890250 |
Minimum Order Quantity | 1 pcs |
Packaging Details | Industrial packing or customer's request |
Delivery Time | 3 days in stock;20-25 days by order manufacturing |
Payment Terms | T/T;Western Union;Paypal;L/C |
Supply Ability | 5000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.

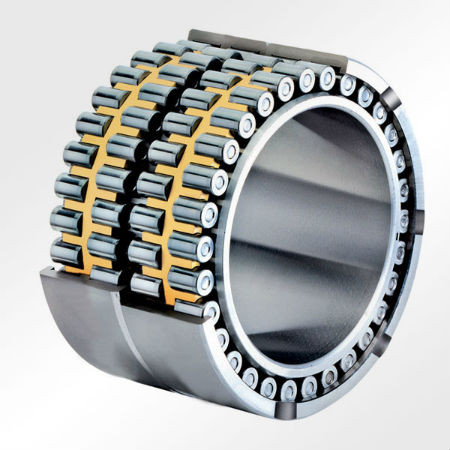

xFour Row Cylindrical Roller Bearing FC6890250
Bearing name: | FC6890250 bearings |
New Model: | FC6890250 |
Old Modle: | 672768K |
bearing: | |
FAG bearing: | |
NTN bearing: | |
NSK bearing: | |
d : | 340mm |
D : | 450mm |
B : | 250mm |
Fw : | 371mm |
Load Rating(kN) | |
Dyn.C | 2307 |
Stat Co | 6585 |
Weight(kg) | 124.4 |
Bearing class: | Cylindrical Roller Bearings, Four Row |
Remarks: | Please contact us for other detail |
Bearing Inventory | 80 pcs |
Order Information:
1.complete set FCD5276280(one single inner ring&double outer ring cage and roller assembly)
2.separable inner ring and separable outer cage and roller assembly are also available.
Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
Bearing No | Dimension(mm) | Basic Loading(kN) | Mass(kg) | |
dxDxB | Dyn.(Cr) | Stat.(Cor) | ||
FC2640125 | 130x200x125 | 530 | 1200 | 14.6 |
FC3045120 | 150x225x120 | 702 | 1408 | 16.2 |
FC3246130 | 160x230x130 | 665 | 1705 | 16.9 |
FC3248124 | 160x240x124 | 685 | 1530 | 20.3 |
FC3248168 | 160x240x168 | 1042 | 2310 | 26.7 |
FCD3446160 | 170x230x160 | 1100 | 2360 | 20 |
FC3452120 | 170x260x120 | 660 | 1790 | 24.6 |
FC3652124 | 180x260x124 | 735 | 1730 | 21.7 |
FC3652168 | 180x260x168 | 1070 | 2790 | 30.2 |
FC3652168/YA3 | 180x260x168 | 1070 | 2790 | 30.1 |
FC3854168 | 190x270x168 | 950 | 2430 | 30.2 |
FC3854168/YA3 | 190x270x168 | 950 | 2430 | 29.9 |
FC3854170/YA3 | 190x270x200 | 950 | 2430 | 30.2 |
FC4056188 | 200x290x192 | 985 | 2580 | 35.7 |
FC4462192/YA3 | 220x310x192 | 1300 | 1910 | 45.8 |
FC4462225 | 220x320x210 | 1450 | 4050 | 53.9 |
FC4666206/YA3 | 230x330x206 | 1350 | 3800 | 56.5 |
FC4866220/YA3 | 240x330x220 | 1620 | 4850 | 56.5 |
FC4866220 | 240x330x220 | 1620 | 4850 | 56.7 |
FC4872220 | 240x360x200 | 1700 | 4410 | 78 |
FC4872220A/C4YA3 | 240x360x200 | 1700 | 4410 | 78 |
FC5072220/YA3 | 250x360x220 | 1500 | 4250 | 76.9 |
FC5274200 | 260x370x200 | 1570 | 4250 | 73 |
FC5274220/YA3 | 260x370x220 | 1760 | 4900 | 79.2 |
FC5274220 | 260x370x220 | 1760 | 4900 | 80 |
FC5476230/YA3 | 270x380x230 | 1720 | 4800 | 80.2 |
FC5478230 | 270x390x236 | 2100 | 5950 | 97.8 |
FC5678220 | 280x390x220 | 1790 | 5150 | 86.5 |
FCDP5678275 | 280x390x275 | 2200 | 6250 | 102 |
FC6490240/YA3 | 320x450x240 | 2460 | 6720 | 119 |
FCD72102370 | 360x510x370 | 3850 | 11400 | 220 |
FCDP74104380 | 370x520x380 | 3900 | 12000 | 296 |
FCDP88124450 | 440x620x450 | 5200 | 15800 | 452 |
FCDP88124450/YA6 | 440x620x450 | 5200 | 15800 | 452 |
FCD96130450 | 480x650x450 | 4750 | 15400 | 419 |
