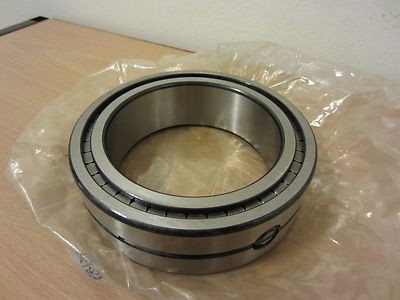

SL014920 cylindrical roller bearing,full complement,double row

  • SL014920 cylindrical roller bearing,full complement,double row
  • SL014920 cylindrical roller bearing,full complement,double row
Place of Origin China
Brand Name Neutral or OEM
Model Number SL014920
Minimum Order Quantity 1 pcs
Packaging Details Plastic bag+single box
Delivery Time 3-5 days in stock;within 20 days order manufacturing
Payment Terms T/T;Western Union;Paypal
Supply Ability 5000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Row Double Row
Leave a Message
Product Description

SL014920 cylindrical roller bearing,full complement,double row,locating bearing

Bore Diameter: 100 mm
Outside Diameter: 140 mm
Overall Width: 40 mm
Number of Rows: Two
Ring Separation: Non-Separable
Bore Type: Round
Internal Clearance: C0
Operating Temperature Range: -30 to +120 °C
Precision Rating: Not Rated
Maximum RPM: 2700 RPM
Cage Material: No Cage
Finish/Coating: Uncoated
Closure Type: Open
Outer Ring Width: 40 mm
Series: SL01
SL014920 cylindrical roller bearing,full complement,double row 0  SL014920 cylindrical roller bearing,full complement,double row 1SL014920 cylindrical roller bearing,full complement,double row 2

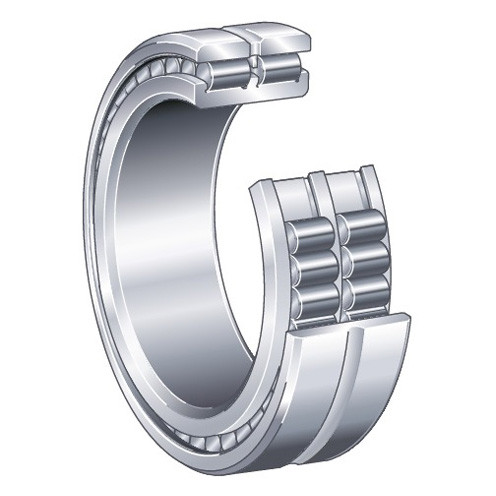

The bearings have solid outer and inner rings and rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.
Double row full complement cylindrical roller bearings are available as non-locating, semi-locating and locating bearings. The bearings do not permit any skewing between the inner and outer ring.
Application
Machine tool
Petroleum Machinery
Vibrating screen
Gear Drives
Crop Shears
Rolling Mills
General Industrial
Locating & Non-Locating ,Full complement cylindrical roller bearing
 Designation  MASS  Dimensions(mm)  Basic load ratings(KN)
Bearing  .REF Bearing  .REF KG    d       D       B    S  DYN. STAT.
 SL014912  NNC4912      0.49  60  85  25    71  125
     SL024912  NNCL4912  0.47  60  85  25  1  71  125
 SL014914  NNC4914      0.78  70  100  30    108  189
     SL024914  NNCL4914  0.75  70  100  30  1  108  189
 SL014916  NNC4916      0.88  80  110  30    115  211
     SL024916  NNCL4916  0.85  80  110  30  1  115  211
 SL014918  NNC4918      1.35  90  125  35    155  295
     SL024918  NNCL4918  1.3  90  125  35  1.5  155  295
 SL014920  NNC4920      1.95  100  140  40    196  380
     SL024920  NNCL4920  1.9  100  140  40  2  196  380
 SL014922  NNC4922      2.15  110  150  40    204  410
     SL024922  NNCL4922  2.1  110  150  40  2  204  410
 SL014924  NNC4924       2.95  120  165  45    228  455
     SL024924   NNCL4924   2.85  120  165  45  3  228  455
 SL014926  NNC4926       3.95  130  180  50    265  530
     SL024926   NNCL4926   3.8  130  180  50  4  265  530
 SL014928  NNC4928       4.2  140  190  50    275  570
     SL024928   NNCL4928  4.1  140  190  50  4  275  570
 SL014830  NNC4830       2.9  150  190  40    237  550
     SL024830   NNCL4830   2.8  150  190  40  2  237  550
 SL014930 NNC4930       6.65  150  210  60    415  840
     SL024930   NNCL4930  6.45  150  210  60  4  415  840
 SL014832  NNC4832       3.1  160  200  40    243  580
     SL024832  NNCL4832   3  160  200  40  2  243  580
 SL014932  NNC4932      7  160  220  60    435  900
     SL024932  NNCL4932   6.8  160  220  60  4  435  900
 SL014834  NNC4834      5.65  170  215  45    265  620
     SL024834  NNCL4834   5.45  170  215  45  3  265  620
 SL014934  NNC4934      7.35  170  230  60    445  950
     SL024934  NNCL4934   7.1  170  230  60  4  445  950
