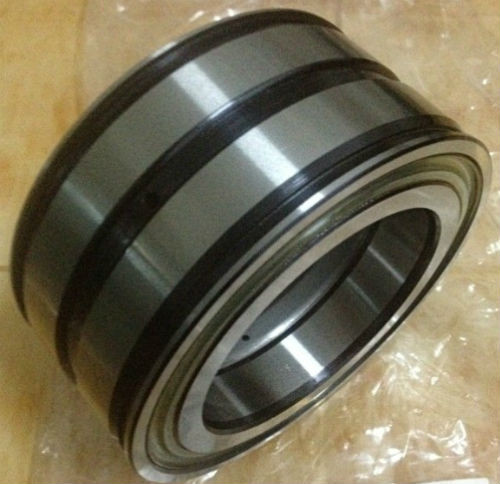

SL045017PP double row full complement cylindrical roller bearing,sealed bearing

Brand Name INA Neutral or OEM
Model Number SL045017PP
Minimum Order Quantity 1
Packaging Details Plastic bag+single box
Delivery Time 3 days in stock;within 20 days for order manufacture
Payment Terms T/T;Western Union;Paypal
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Row Double Row
Leave a Message
Product Description

SL045017PP double row full complement cylindrical roller bearing,sealed bearing

d:85mm

D:130mm

B:60mm

C:59mm

Dynamic Load:211 kN

Static Load:350 kN

Mass:2.83kg

SL045017PP double row full complement cylindrical roller bearing,sealed bearing 0     SL045017PP double row full complement cylindrical roller bearing,sealed bearing 1

The bearings have solid outer and inner rings and rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.

Double row full complement cylindrical roller bearings are available as non-locating, semi-locating and locating bearings. The bearings do not permit any skewing between the inner and outer ring.
Full complement cylindrical roller bearing with snap ring grooves
 Designation  Designation  MASS  Dimensions Basic Load Ratings
Bearing  .REF KG  d(mm)  D(mm)  B(mm)  C(mm)  DYN.(KN)  STAT.(KN)
 SL045004PP NNF5004 ADA 2LSV 0.2  20  42 30  29  40.5  49
 SL045005PP NNF5005 ADA 2LSV 0.24 25 47 30 29 44.5 58
 SL045006PP  NNF5006 ADA 2LSV  0.37 30 55 34 33 50 67
 SL045007PP NNF5007 ADA 2LSV 0.48 35 62 36 35 63 88
 SL045008PP NNF5008 ADA 2LSV 0.56 40 68 38 37 76 103
 SL045009PP NNF5009 ADA 2LSV 0.7 45 75 40 39 92 130
 SL045010PP NNF5010 ADA 2LSV 0.76 50 80 40 39 97 142
 SL045011PP NNF5011 ADA 2LSV 1.18 55 90 46 45 115 175
 SL045012PP NNF5012 ADA 2LSV 1.26 60 95 46 45 120 189
 SL045013PP NNF5013 ADA 2LSV 1.33 65 100 46 45 125 203
 SL045014PP NNF5014 ADA 2LSV 1.87 70 110 54 53 168 265
 SL045015PP NNF5015 ADA 2LSV 1.96 75 115 54 53 194 300
 SL045016PP NNF5016 ADA 2LSV 2.71 80 125 60 59 203 325
 SL045017PP NNF5017 ADA 2LSV 2.83 85 130 60 59 211 350
 SL045018PP NNF5018 ADA 2LSV 3.71 90 140 67 66 305 510
 SL045019PP NNF5019 ADA 2LSV 3.88 95 145 67 66 315 530
 SL045020PP NNF5020 ADA 2LSV 3.91 100 150 67 66 330 550
 SL045022PP NNF5022 ADA 2LSV 6.57 110 170 80 79 395 680
 SL045024PP NNF5024 ADA 2LSV 7.04 120 180 80 79 410 740
 SL045026PP NNF5026 ADA 2LSV 10.5 130 200 95 94 540 960
 SL045028PP NNF5028 ADA 2LSV 11.1 140 210 95 94 610 1100
 SL045030PP NNF5030-ADA-2LSV 13.3 150 225 100 99 710 1260
 SL045032PP NNF5032-ADA-2LSV 16.6 160 240 109 108 740 1360
 SL045034PP NNF5034-ADA-2LSV 22.6 170 260 122 121 960 1750
 SL045036PP NNF5036-ADA-2LSV 30.1 180 280 136 135 1140 2130
 SL045038PP NNF5038-ADA-2LSV 31.5 190 290 136 135 1160 2210
 SL045040PP  NNF5040-ADA-2LSV 40.8  200  310  150 149  1350  2600
 SL04130PP  319426 DA-2LS  7.5  130  190  80  79  430  790
 SL04140PP  319428 DA-2LS  8 140  200  80  79  445  840
 SL04150PP  319430 DA-2LS  8.4  150  210  80  79  465  920
 SL04160PP  319432 DA-2LS  8.8  160  220  80  79  480  970
 SL04170PP  319434 DA-2LS  9.3  170  230  80  79  490  1030
 SL04180PP  319436 DA-2LS  9.8  180  240  80  79  500  1080
 SL04190PP  319438 DA-2LS  12.7  190  260  80  79  520  1130
 SL04200PP  319440 DA-2LS  13.2  200  270  80  79  540  1210

Unide Bearing is a leading supplier of full complement cylindrical roller bearings.Its products are manufactured with high-grade technology to guarantee the excellent performance in the usage.we supply single row,double row,three row full complement cylindrical roller bearings with open and sealed types.
