313921 four row cylindrical roller bearing 240*330*220mm

I'm Online Chat Now

313921 four row cylindrical roller bearing 240*330*220mm

China 313921 four row cylindrical roller bearing 240*330*220mm supplier

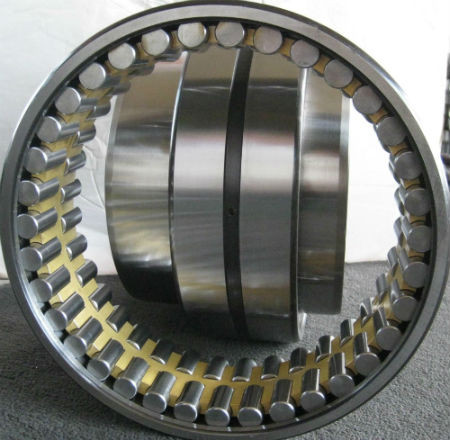

Large Image :  313921 four row cylindrical roller bearing 240*330*220mm

Product Details:

Place of Origin: China
Brand Name: Neutral&OEM
Model Number: 313921

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: ASK
Packaging Details: Industrial/Customized
Delivery Time: 3-5 days for stock numbers;within 20 days by order manufacturing
Payment Terms: T/T;Western Union;Paypal;L/C
Contact Now
Detailed Product Description
Precision Rating: P0;P6



Bearing No. 313921 313921 four row cylindrical roller bearing 240*330*220mm
Main Dimension mm
Inside Dia-d 240
Outside Dia-D 330
Width-B 220
Fw 270
Mass 58
OEM Service Yes
Cage Machined brass cage
Structure Cylindrical
Bearing Type Cylindrical Roller Bearing,Four Row
Interchange China FC4866220E
313921
FAG 508368
NTN 4R4811
NSK 240RV3301
KOYO 312943/IYD

Description:

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.

FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
