313427B four row cylindrical roller bearing 260*400*290mm

I'm Online Chat Now

313427B four row cylindrical roller bearing 260*400*290mm

China 313427B four row cylindrical roller bearing 260*400*290mm supplier

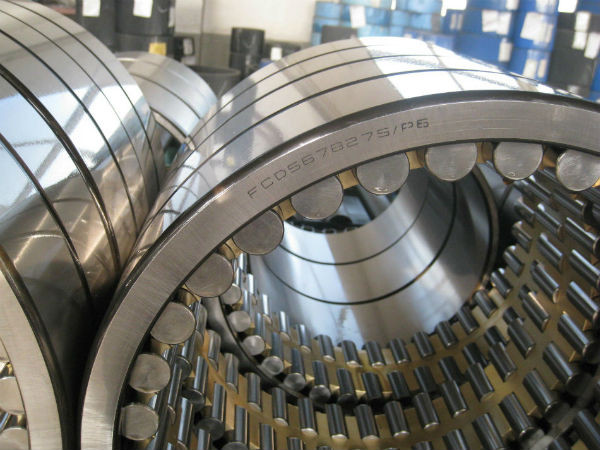

Large Image :  313427B four row cylindrical roller bearing 260*400*290mm

Product Details:

Place of Origin: China
Brand Name: Neutral&OEM
Model Number: 313427B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: ASK
Packaging Details: Industrial/Customized
Delivery Time: 3-5 days for stock numbers;within 20 days by order manufacturing
Payment Terms: T/T;Western Union;Paypal;L/C
Contact Now
Detailed Product Description



Bearing No. 313427B 313427B four row cylindrical roller bearing 260*400*290mm
Main Dimension mm
Inside Dia-d 260
Outside Dia-D 400
Width-B 290
Fw 296
Mass 135
OEM Service Yes
Cage Machined brass cage
Structure Cylindrical
Bearing Type Cylindrical Roller Bearing,Four Row
Interchange China FCD5280290
313427B
FAG 518214
NTN
NSK
KOYO

Description:

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.

FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
