7019 CTYNSULP4 High Precision Angular Contact Ball Bearing

China 7019 CTYNSULP4 High Precision Angular Contact Ball Bearing supplier

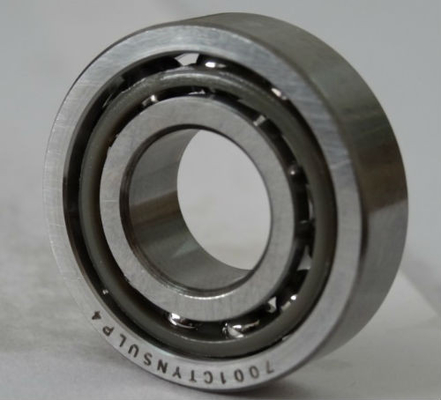

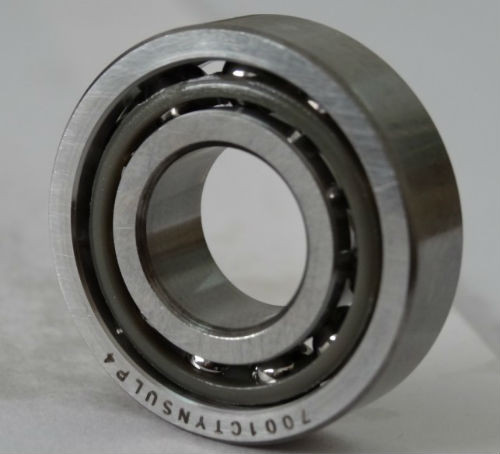

Large Image :  7019 CTYNSULP4 High Precision Angular Contact Ball Bearing

Product Details:

Place of Origin: China
Brand Name: Neutral or OEM
Certification: ISO9001
Model Number: 7019 CTYNSULP4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Industrial packing or customer's request
Delivery Time: 3 days in stock;within 10days custom made
Payment Terms: T/T;Western Union;Paypal;L/C
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description

P4 Angular Contact Ball Bearing 7019 CTYNSULP4

Boundary Dimension
d /mm 95
D /mm 145
B /mm 24
ris /min 1.5
rs /min 1.0
Basic Loading Ratings(KN)
Dynamic /Cr 73.5
Static /Cor 73
Limiting speed r/min
Grease 9600
Oil 14600

C ► Contact Angle-C:15°,A5:25°,A:30°

TYN ►Cage-Ball guided polyamide resin cage

SU Universal arrangment(single row)&(DB-Back-to-back arrangement;DF-Face-to-face arangement)

►Preload-L:light preload,M:Medium preload,H:heavy preload

P4 ►Accuracy-P2:ISO Class 2,P4:ISO Class 4,P5:ISO Class 5,

High speed and high precision angular contact ball bearings:

7019 CTYNSULP4 High Precision Angular Contact Ball Bearing7019 CTYNSULP4 High Precision Angular Contact Ball Bearing

Contact angle Nomial Contact Applicable clearance group
Symbol angle
C 15° C1 C2
A 30°   C2 CN C3
B 40°     CN C3 C4
