7013 CTYNSULP4 High Precision Angular Contact Ball Bearing

Place of Origin China
Brand Name Neutral or OEM
Certification ISO9001
Model Number 7013 CTYNSULP4
Minimum Order Quantity 1
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 10days custom made
Payment Terms T/T;Western Union;Paypal;L/C
Supply Ability 30000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Row Single Row
Leave a Message
Product Description

P4 Miniature Angular Contact Ball Bearing 7013 CTYNSULP4

Boundary Dimension
d /mm 65
D /mm 100
B /mm 18
ris /min 1.1
rs /min 0.6
Basic Loading Ratings(KN)
Dynamic /Cr 37
Static /Cor 34.5
Limiting speed r/min
Grease 14000
Oil 21300

C ► Contact Angle-C:15°,A5:25°,A:30°

TYN ►Cage-Ball guided polyamide resin cage

SU Universal arrangment(single row)&(DB-Back-to-back arrangement;DF-Face-to-face arangement)

►Preload-L:light preload,M:Medium preload,H:heavy preload

P4 ►Accuracy-P2:ISO Class 2,P4:ISO Class 4,P5:ISO Class 5,

High speed and high precision angular contact ball bearings:

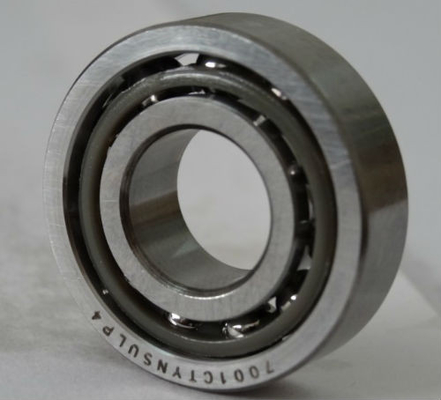

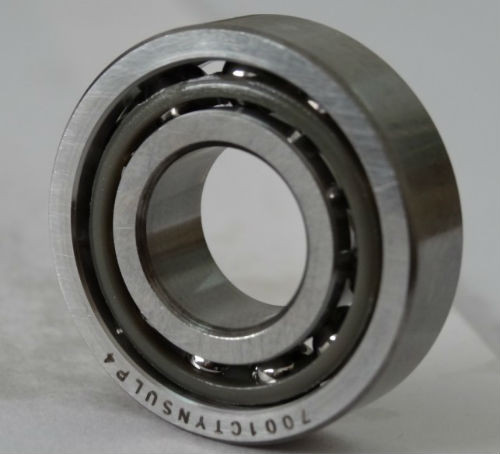

7013 CTYNSULP4 High Precision Angular Contact Ball Bearing 07013 CTYNSULP4 High Precision Angular Contact Ball Bearing 1

Contact angle Nomial Contact Applicable clearance group
Symbol angle
C 15° C1 C2
A 30°   C2 CN C3
B 40°     CN C3 C4
