PDN series plummber block and flanged housing units PDNB 319
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.

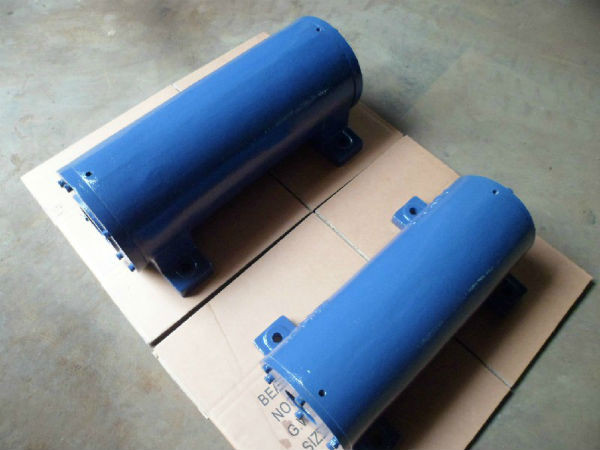

xPDN series plummber block and flanged housing units PDNB 319
Appropriate bearing 2 x 6319
Housings Material:Cast Iron
The bearing arrangement for housings in the PDN series comprises:
►two single row deep groove ball bearings in the 62 series for housings in the PDN 2series
►two single row deep groove ball bearings in the 63 series for housings in the PDN 3 series
Order Information:
PD two-bearing housings
Housings in the PDN series are supplied with the following components:
►housing
►2 covers, including 8 or 12 hexagon head bolts and spring washers depending on size
►2 flinger rings
►1 wave spring washer(up to and including size 218 for housings in the PDN 2 series,and size 316 for housings
in the PDN 3 series)
►2 seals (V-ring seals for housings in the PDN 2series;V-ring seals and felt strips for housings in the PDN 3 series)
Shaft | Housing | Bearings | Shaft | Wave spring Washer | Spare Parts V-ring | Felt Strip | Unit |
Diameter (mm) | |||||||
25 | PDN305 | 2x6305 | VJ-PDNB 305 | WF-62 | 25 VA R | FS 190 | PDNB305 |
30 | PDN206 | 2x6206 | VJ-PDNB 206 | WF-62 | 30 VA R | - | PDNB206 |
PDN306 | 2x6306 | VJ-PDNB 306 | WF-72 | 30 VA R | FS 190 | PDNB306 | |
35 | PDN207 | 2x6207 | VJ-PDNB 207 | WF-72 | 35 VA R | - | PDNB207 |
PDN307 | 2x6307 | VJ-PDNB 307 | WF-80 | 35 VA R | FS 190 | PDNB307 | |
40 | PDN208 | 2x6208 | VJ-PDNB 208 | WF-80 | 40 VA R | - | PDNB208 |
PDN308 | 2x6308 | VJ-PDNB 308 | WF-90 | 40 VA R | FS 190 | PDNB308 | |
45 | PDN309 | 2x6309 | VJ-PDNB 309 | WF-100 | 45 VA R | FS 190 | PDNB309 |
50 | PDN210 | 2x6210 | VJ-PDNB 210 | WF-90 | 50 VA R | - | PDNB210 |
PDN310 | 2x6310 | VJ-PDNB 310 | WF-110 | 50 VA R | FS 190 | PDNB310 | |
55 | PDN211 | 2x6211 | VJ-PDNB 211 | WF-100 | 55 VA R | - | PDNB211 |
PDN311 | 2x6311 | VJ-PDNB 311 | WF-120 | 55 VA R | FS 260 | PDNB311 | |
60 | PDN212 | 2x6212 | VJ-PDNB 212 | WF-110 | 60 VAR | - | PDNB212 |
PDN312 | 2x6312 | VJ-PDNB 312 | WF-130 | 60 VAR | FS 260 | PDNB312 | |
65 | PDN313 | 2x6313 | VJ-PDNB 313 | WF-140 | 65 VAR | FS 260 | PDNB313 |
70 | PDN214 | 2x6214 | VJ-PDNB 214 | WF-125 | 70 VAR | - | PDNB214 |
PDN314 | 2x6314 | VJ-PDNB 314 | WF-150 | 70 VAR | FS 330 | PDNB314 | |
75 | PDN215 | 2x6215 | VJ-PDNB 215 | WF-130 | 75 VAR | - | PDNB215 |
PDN315 | 2x6315 | VJ-PDNB 315 | WF-160 | 75 VAR | FS 330 | PDNB315 | |
80 | PDN216 | 2x6216 | VJ-PDNB 216 | WF-140 | 80 VAR | - | PDNB216 |
PDN316 | 2x6316 | VJ-PDNB 316 | WF-170 | 80 VAR | FS 330 | PDNB316 | |
85 | PDN317 | 2x6317 | VJ-PDNB 317 | - | 85 VAR | FS 330 | PDNB317 |
90 | PDN218 | 2x6218 | VJ-PDNB 218 | WF-160 | 90 VAR | - | PDNB218 |
PDN318 | 2x6318 | VJ-PDNB 318 | - | 90 VAR | FS 370 | PDNB318 | |
95 | PDN319 | 2x6319 | VJ-PDNB319 | - | 95 VAR | FS 370 | PDNB319 |
100 | PDN220 | 2x6220 | VJ-PDNB 220 | - | 100 VAR | - | PDNB220 |
PDN320 | 2x6320 | VJ-PDNB 320 | - | 100 VAR | FS 460 | PDNB320 | |
110 | PDN222 | 2x6222 | VJ-PDNB 222 | - | 110 VAR | - | PDNB222 |
PDN322 | 3x6322 | VJ-PDNB 322 | - | 110 VAR | FS 460 | PDNB322 | |
120 | PDN224 | 2x6224 | VJ-PDNB 224 | - | 120 VAR | - | PDNB224 |
PDN324 | 2x6324 | VJ-PDNB 324 | - | 120 VAR | FS 460 | PDNB324 |
