QJ1030 rolling mill bearings 150x225x35mm

I'm Online Chat Now

QJ1030 rolling mill bearings 150x225x35mm

China QJ1030 rolling mill bearings 150x225x35mm supplier

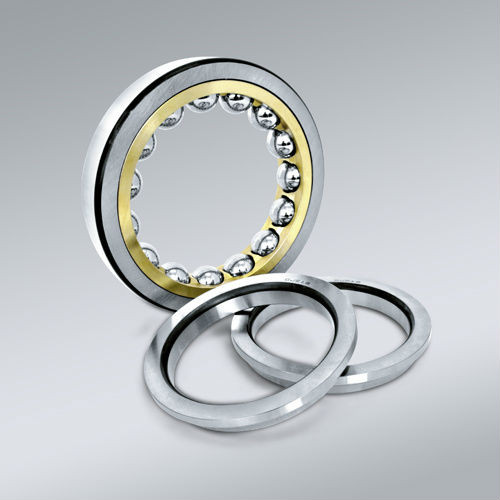

Large Image :  QJ1030 rolling mill bearings 150x225x35mm

Product Details:

Place of Origin: China
Model Number: QJ1030

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: ASK
Packaging Details: Industrial or customized
Delivery Time: 3 days for stock number;within 15 days by order producing
Payment Terms: T/T;Western Union;Paypal
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P0;P6 Seals Type: None
Number Of Row: Single Row

Angular contact ball bearings,four-point contact ball bearings

Bearing No. QJ1030 QJ1030 rolling mill bearings 150x225x35mm
Main Dimension mm
Inside Dia-d 150
Outside Dia-D 225
Width-B 35
Mass(kg) 5.26
OEM Service Yes
Bearing Name Four point angular contact ball bearings
Cage M-Brass
Contact Angle 35°
Clearance C2;C3;C4
Tolerance P0;P6
Structure Angular contact


Four-point contact ball bearings are radial single row angular contact ball bearings with raceways that are designed to support axial loads in both directions. four-point contact ball bearings can be supplied with two locating slots in the outer ring to prevent it from turning (designation suffix N2). The locating slots are positioned 180° apart.
