High quality with dimension 280x400x285mm cylindrical roller bearing FCD5680285
Place of Origin | China |
---|---|
Certification | ISO9001 |
Model Number | FCD5680285 |
Minimum Order Quantity | 1 pcs |
Price | ASK |

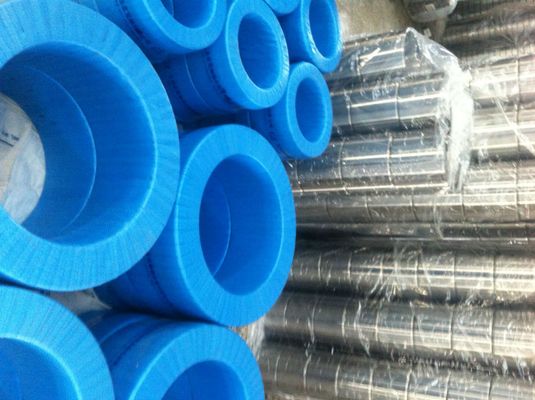

Packaging Details | Color belt&wooden case or customer's request |
Delivery Time | 3-5 days for stocks;within 15 days by order manufacturing |
Payment Terms | T/T;Western Union;Paypal |
Supply Ability | 5000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description

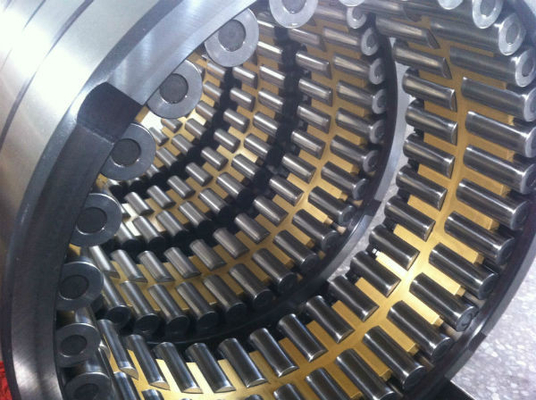

FCD5680285 rolling mill bearing 280x400x285 mm,cylindrical roller bearing,four row
--for interference fit on the roll neck,with circumferential lubricating grooves and lubricating holes on the outer ring
FCD5680285 bearing details:
Bearing | Main Dimension(mm) | Load Rating(kN) | Mass | ||||
Design | d | D | B | F | Dyn.C | Stat.Co | kg |
FCD5680285 | 280 | 400 | 285 | 316 | 3140 | 7350 | 120 |
FAG code | |||||||
314070/VJ202 | code | ||||||
NTN code | |||||||
NSK code | |||||||
FCD5680285 | China Code |
Description:
Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
Part of Rolling Mill Bearings table:
Fag code | Fag old code | code | Nsk-code | Ntn-code | Koyo-code |
Z-502894.02.ZL | 502894B | 314190 | 160RV2301 | 4R3226 | 314190 |
Z-504547.ZL | 504547 | 635194 | |||
Z-506962.ZL | 506962 | 313891A | 150RV2302 | 4R3040 | 313891-1 |
Z-507333.ZL | 507333 | 313839 | 220RV3101 | 4R4426 | 313837A |
Z-507336.ZL | 507336 | 313823 | 260RV3701 | 4R5208 | 313823 |
Z-507339.ZL | 507339 | 313822 | 280RV3901 | 4R5611 | 313822 |
Z-507344.ZL | 507344 | 314385 | 200RV2804 | 4R4048 | 40FC28170 |
Z-507536.ZL | 507536 | 313812 | 180RV2601 | 4R3628 | 313812W |
Z-507735.ZL | 507735 | 313651 | 190RV2601 | 4R3820 | 38FC26168-1 |
Z-508657.ZL | 508657 | 314199B | 190RV2701 | 4R3821 | 314199 |
Z-508726.ZL | 508726 | 313893 | 200RV2802 | ||
Z-508727.ZL | 508727 | 313824 | 230RV3301 | 4R4610 | 313824 |
Z-510150.02.ZL | 510150B | 315189A | 160RV2302 | 4R3232 | |
Z-511605.ZL | 511605 | 314625 | 145RV2101 | 4R2906 | 29FC21155 |
Z-512580.ZL | 512580 | 313811 | 200RV2901 | 4R4041 | 313811 |
Z-512764.ZL | 512764 | 313924A | 145RV2201 | 4R2904 | 313924 |
Z-522742.ZL | 522742 | 314553 | 4R4039 | 314553 | |
Z-524289.02.ZL | 524289B | 314484D | 300RV4221 | 4R6020 | 4CR300 |
Z-527104.ZL | 527104 | 314719 | 280RV3903 | ||
Z-527634.ZL | 527634 | 314485 | 340RV4801 | 4R6819 | 68FC48350D |
Z-529468.N12BA | 529468.N12BA | 315642/VJ202 | |||
Z-543975.ZL | 543975 | 314486A | 370RV5211 | ||
Z-804868.ZL-N12BA | 804868.N12BA | 314997VJ/202 | |||
