BC4B635122 rolling mill bearings 170240130mm

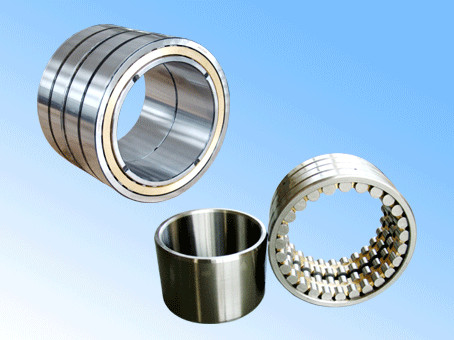

: Large Image : BC4B635122 rolling mill bearings 170*240*130mm

Product Details:

Model Number:	BC4B635122

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	ASK
Packaging Details:	Industrial/Customized
Delivery Time:	3-5 days for stock numbers;within 20 days by order manufacturing
Payment Terms:	T/T;Western Union;Paypal;L/C

Contact Now

Detailed Product Description

Bearing No.	BC4B635122
Main Dimension	mm
Inside Dia-d	170
Outside Dia-D	240
Width-B	130
Fw	190
Mass	18.7
OEM Service	Yes
Cage
Structure	Cylindrical
Bearing Type	Cylindrical Roller Bearing,Four Row
Interchange	China	FC3448130
		BC4B635122
	FAG
	NTN
	NSK
	KOYO

Description

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.

FC: double outer rings, single inner ring, and inner without flange.

FCD: double outer rings, double inner rings, and inner ring without flange.

FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
