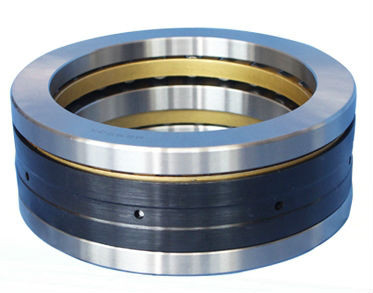

Taper roller thrust bearing for rolling mill bearings 522008

Place of Origin China
Certification ISO9001
Model Number 522008
Minimum Order Quantity 1
Price ASK
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 10days custom made
Payment Terms T/T;Western Union;Paypal;L/C
Supply Ability 5000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

579703 HW taper roller thrust bearing,double acting,with spacer

Bearing Type Taper roller thrust bearings Taper roller thrust bearing for rolling mill bearings 522008 0
Model Number 522008
Dimension (mm)
dw 350
dg 400
Dg 540
H 135
Load Rating (kN)
Dyn.C 1800
Stat.Co 10400
Weight 106 kg
Description Taper roller thrust bearing,double direction

As double direction tapered roller thrust bearings are usually mounted with a loose fit on the roll neck as well as in the chock, the shaft washer of most bearings has one or two locating slots. It is then possible to prevent the shaft washer from rotating on its seat by using keys which engage the slots, or by similar means.
