Taper roller thrust bearing for rolling mill bearings 545936HW
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.

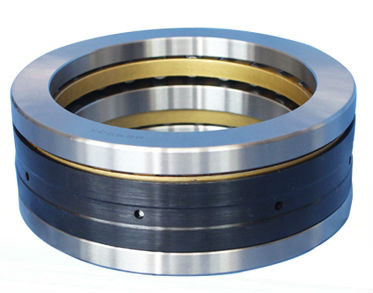

x545936HW taper roller thrust bearing,double acting,with spacer
Bearing Type | Taper roller thrust bearings | |||
Model Number | 545936HW | |||
Dimension | (mm) | |||
dw | 380 | |||
dg | 450 | |||
Dg | 650 | |||
H | 215 | |||
Load Rating | (kN) | |||
Dyn.C | 3750 | |||
Stat.Co | 19300 | |||
Weight | 275 kg | |||
Description | Taper roller thrust bearing,double direction |
As double direction tapered roller thrust bearings are usually mounted with a loose fit on the roll neck as well as in the chock, the shaft washer of most bearings has one or two locating slots. It is then possible to prevent the shaft washer from rotating on its seat by using keys which engage the slots, or by similar means.
