Taper roller thrust bearing for rolling mill bearings 509391HW

I'm Online Chat Now

Taper roller thrust bearing for rolling mill bearings 509391HW

China Taper roller thrust bearing for rolling mill bearings 509391HW supplier

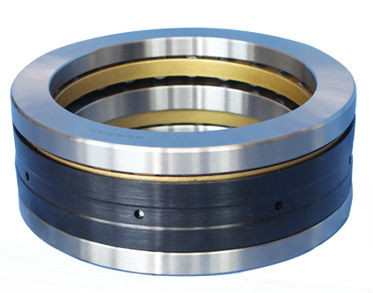

Large Image :  Taper roller thrust bearing for rolling mill bearings 509391HW

Product Details:

Place of Origin: China
Certification: ISO9001
Model Number: 509391HW

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: ASK
Packaging Details: Industrial packing or customer's request
Delivery Time: 3 days in stock;within 10days custom made
Payment Terms: T/T;Western Union;Paypal;L/C
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description

509391HW taper roller thrust bearing,double acting,with spacer

Bearing Type Taper roller thrust bearings Taper roller thrust bearing for rolling mill bearings 509391HW
Model Number 509391HW
Dimension (mm)
dw 470
dg 535
Dg 720
H 200
Load Rating (kN)
Dyn.C 3400
Stat.Co 19300
Weight 283 kg
Description Taper roller thrust bearing,double direction

As double direction tapered roller thrust bearings are usually mounted with a loose fit on the roll neck as well as in the chock, the shaft washer of most bearings has one or two locating slots. It is then possible to prevent the shaft washer from rotating on its seat by using keys which engage the slots, or by similar means.
