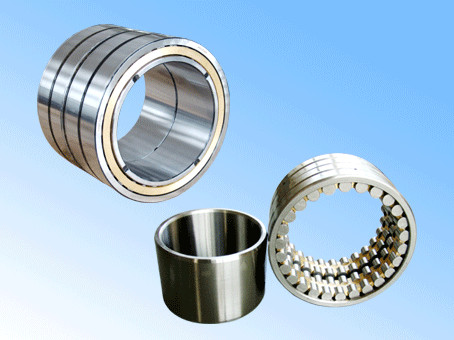

505470 rolling mill bearings 170*260*225mm

  • 505470 rolling mill bearings 170*260*225mm
Model Number 505470
Minimum Order Quantity 1 set
Price ASK
Packaging Details Industrial/Customized
Delivery Time 3-5 days for stock numbers;within 20 days by order manufacturing
Payment Terms T/T;Western Union;Paypal;L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description



Bearing No. 505470 505470 rolling mill bearings 170*260*225mm 0
Main Dimension mm
Inside Dia-d 170
Outside Dia-D 260
Width-B 225
Fw 196
Mass 43.3
OEM Service Yes
Cage Machined brass cage
Remarks with circumferential lubricating grooves and lubricating holes in outer rings
Structure Cylindrical
Bearing Type Cylindrical Roller Bearing,Four Row
Interchange China FC3452225
313587B
FAG 505470
NTN 4R3431
NSK
KOYO

Description:

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.

FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
