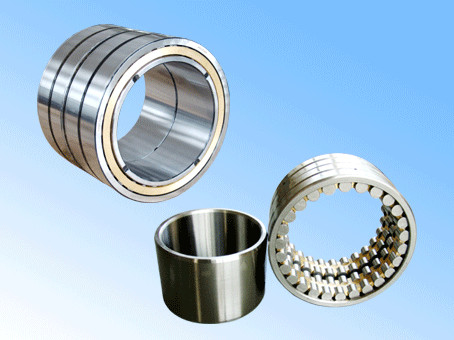

524373 rolling mill bearings 200*310*200mm

Model Number 524373
Minimum Order Quantity 1 set
Price ASK
Packaging Details Industrial/Customized
Delivery Time 3-5 days for stock numbers;within 20 days by order manufacturing
Payment Terms T/T;Western Union;Paypal;L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description



Bearing No. 524373 524373 rolling mill bearings 200*310*200mm 0
Main Dimension mm
Inside Dia-d 200
Outside Dia-D 310
Width-B 200
Fw 229
Mass 55.8
OEM Service Yes
Cage Machined brass cage
Structure Cylindrical
Bearing Type Cylindrical Roller Bearing,Four Row
Interchange China FC4062200

FAG 524373
NTN
NSK
KOYO

Description:

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.

FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
