525147 rolling mill bearings 220*340*290mm

China 525147 rolling mill bearings 220*340*290mm supplier

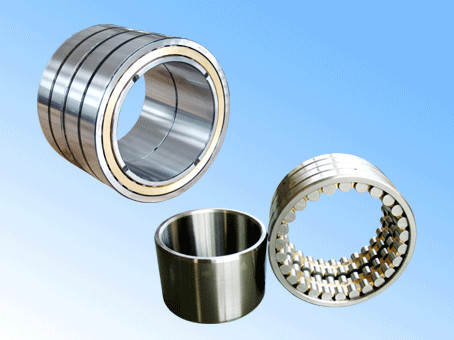

Large Image :  525147 rolling mill bearings 220*340*290mm

Product Details:

Model Number: 525147

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: ASK
Packaging Details: Industrial/Customized
Delivery Time: 3-5 days for stock numbers;within 20 days by order manufacturing
Payment Terms: T/T;Western Union;Paypal;L/C
Contact Now
Detailed Product Description


Bearing No. 525147 525147 rolling mill bearings 220*340*290mm
Main Dimension mm
Inside Dia-d 220
Outside Dia-D 340
Width-B 290
Fw 250
Mass 96.3
OEM Service Yes
Cage Machined brass cage
Structure Cylindrical
Bearing Type Cylindrical Roller Bearing,Four Row
Interchange China FCD4468290
FAG 525147


Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
