Angular contact ball bearings,double row 305428D

Place of Origin China
Brand Name Neutral or OEM
Certification ISO9001
Model Number 305428D
Minimum Order Quantity 1
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 10days custom made
Payment Terms T/T;Western Union;Paypal;L/C
Supply Ability 5000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Precision Rating P0;P6;P5;P4;P2 Number Of Row Double Row
Bore Diameter 200 Mm Ouer Diameter 279.5 Mm
Width 76 Mm
Leave a Message
Product Description

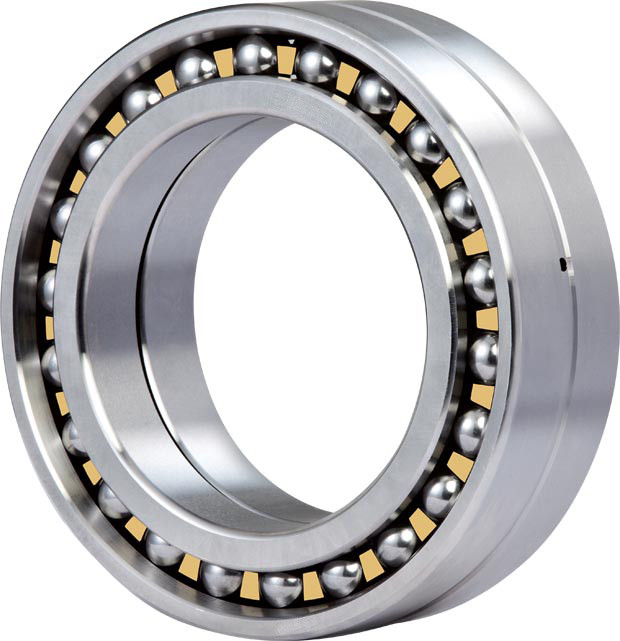

Angular contact ball bearings,double row 305428D

-non-seperable,thrust bearings for wire mills

Double row angular contact ball bearings are selected according to sustained axial and moment load. Pressed steel cage are used for them. Double row angular contact ball bearings correspond in design to two single row angular contact ball bearings but take up less axial space. They can accommodate radial loads as well as axial loads acting in both directions. They provide stiff bearing arrangements and are able to accommodate tilting moments.

Interchangeable Table

Fag old code  code Nsk-code d mm  D  mm B  mm
503288 305180 170BDY10E 170 260 84
506963 305283D 150BDZ2301E4 150 230 70
507511 305183 160BDY10E 160 240 76
508091A 466895/307377   150 210 25
508731A 305270D 260BDZ3601E4 260 369,5 92
508732 305264 230BDZ3201E4 230 329,5 80
508733A 305428D 200BDZ09XE4 200 279,5 76
509059A 305262D 180BDZ2501E4 180 259.5 66
509590A 305263D 200BDZ2801E4 200 289,5 76
510776A 305286D 150BDZ2201E4 150 225 73
511045A 305272D 220BDZ3001E4 220 309,5 76
514478 305608D 160BDZ2101E4 160 215 50
517458A 305256D 120BDZ1901E4 120 190 66
517977A     210 300 40
538854 309515 140BDZ10XE4 140 209,5 66
