538522 Cylindrical roller bearing,four row
Place of Origin | China |
---|---|
Brand Name | Neutral or OEM |
Certification | ISO9001 |
Model Number | 538522 |
Minimum Order Quantity | 1 pcs |
Packaging Details | Industrial packing or customer's request |
Delivery Time | 3 days in stock;within 10days custom made |
Payment Terms | T/T;Western Union;Paypal;L/C |
Supply Ability | 10000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xNumber Of Row | Four Row | Bore Diameter | 145 Mm |
---|---|---|---|
Outer Diameter | 225 Mm | Width | 156 Mm |

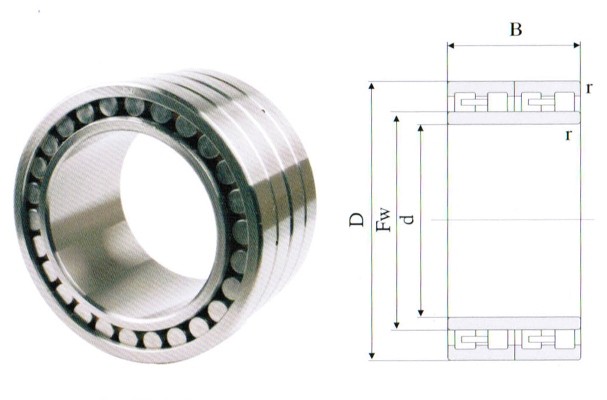

Cylindrical roller bearing,four row 538522 for the interferance fit on the roll neck
Bearing name: | 538522 bearings |
New Model: | 538522 |
d : | 145mm |
D : | 225mm |
B : | 156mm |
Fw : | 169mm |
Load Rating(kN) | |
Dyn.C | 1100 |
Stat Co | 1660 |
Weight(kg) | 22.7 |
Reference: | 538522 |
Bearing class: | Cylindrical Roller Bearings, four row |
Remarks: | Please contact us for other detail |
Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
22310ASK.578623 | 505057 | 24140AK30.527490 |
503288 | 508733A | 506725A |
508091A | 24126ASK30.535611 | 509173 |
23136S.579251 | 505356 | 24140B.522444 |
503316 | 508776A | 506743A |
508308 | 24128ASK30.527487 | 509352 |
23140B.568923 | 505466 | 24140B.541020 |
503326A | 508780 | 506869 |
508328B | 24128S.541505 | 509391 |
23218ASK.801440 | 505467 | 24144AK30.514842 |
503594 | 508893A | 506871 |
508368 | 24130ASK30.514243 | 509392 |
23236B.568924 | 505470 | 24144B.527514 |
503656 | 508955 | 506872 |
508370 | 24130BS.523822 | 509411 |
24028S.528857 | 505610 | 24148AK30.527491 |
503739 | 508990A | 506962 |
508657 | 24132ASK30.527488 | 509590A |
24032S.523823 | 505611B | 24148B.517299 |
503742 | 509029 | 506963 |
508658A | 24134ASK30.527489 | 509654 |
24038BS.523792 | 505612 | 24148B.541021 |
503745 | 509059A | 506964 |
508726 | 24134BS.523378 | 509665 |
24040BS.525392 | 505613A | 24152AK30.514242 |
503772 | 509091A | 507333 |
508727 | 24136ASK30.525605 | 509680 |
24044B.572037 | 505614A | 24152B.530662 |
503901.N12BA | 509092A | 507335 |
508728 | 24136BS.523817 | 509693A |
24052B.572036 | 505684 | 24152B.561779 |
504083 | 509093A | 507336 |
508729 | 24138AK30.518393 | 509737A |
24056B.538565 | 506201 | 24156B.531079 |
504415A | 509094A | 507338A |
508730A | 24138B.536423 | 510033 |
24060B.531119 | 506497A | 24160AK30.526655 |
504512 | 509098A | 507339 |
508731A | 510038 | 510035 |
24122ASK30.533310 | 24172AK30.801462 | 24160B.541538 |
504547 | 507343A | 507341 |
508732A | 510039 | 510036 |
24124S.578744 | 24184AK30.525933 | 24164AK30.523187 |
513342.N12BA | 507344 | 507342A |
517254 | 510041 | 511978 |
511044A | 500857A | 514166 |
513357 | 507448 | 517679 |
517329A | 510043 | 511979 |
511045A | 500860 | 514225 |
513378A | 507508 | 517680A |
517369A | 510150 | 511980 |
511115 | 500861 | 514278A |
