508370 Cylindrical roller bearing,four row

  • 508370 Cylindrical roller bearing,four row
Place of Origin China
Brand Name Neutral or OEM
Certification ISO9001
Model Number 508370
Minimum Order Quantity 1 pcs
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 10days custom made
Payment Terms T/T;Western Union;Paypal;L/C
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Row Four Row Bore Diameter 170 Mm
Outer Diameter 230 Mm Width 130 Mm
Leave a Message
Product Description

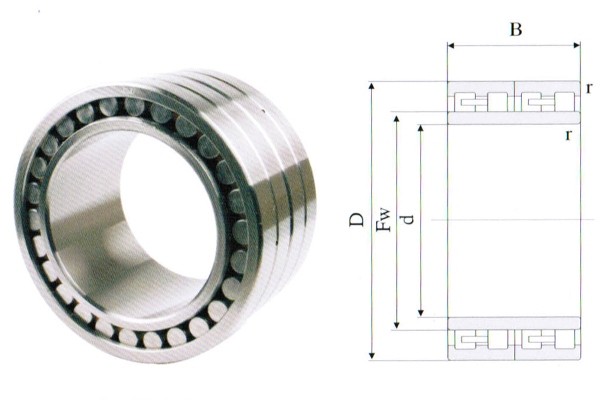

Cylindrical roller bearing,four row 508370 for the interferance fit on the roll neck

Bearing name: 508370 bearings
New Model: 508370
d : 170mm
D : 230mm
B : 130mm
Fw : 188.5mm
Load Rating(kN)
Dyn.C 780
Stat Co 1400
Weight(kg) 15.1
Reference: 508370
Bearing class: Cylindrical Roller Bearings, four row
Remarks: Please contact us for other detail

508370 Cylindrical roller bearing,four row 0508370 Cylindrical roller bearing,four row 1

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.

FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
