Four row cylindrical roller bearings for the interferance fit on the roll neck 567622

Place of Origin China
Brand Name Neutral or OEM
Certification ISO9001
Model Number 567622
Minimum Order Quantity 1 pcs
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 10days custom made
Payment Terms T/T;Western Union;Paypal;L/C
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bore Diameter 170 Mm Outer Diameter 230 Mm
Width 160 Mm
Leave a Message
Product Description

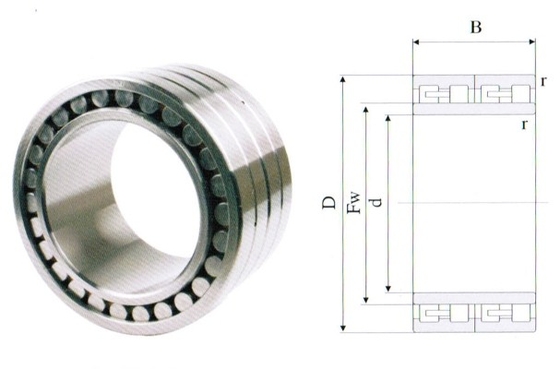

Cylindrical roller bearing,four row 567622 for the interferance fit on the roll neck

Bearing name: 567622 bearings
New Model: 567622
d : 170mm
D : 230mm
B : 160mm
Fw : 185.5mm
Load Rating(kN)
Dyn.C 1200
Stat Co 2200
Weight(kg) 18.9
Reference: 567622
Bearing class: Cylindrical Roller Bearings, four row
Remarks: Please contact us for other detail

Four row cylindrical roller bearings for the interferance fit on the roll neck 567622 0Four row cylindrical roller bearings for the interferance fit on the roll neck 567622 1

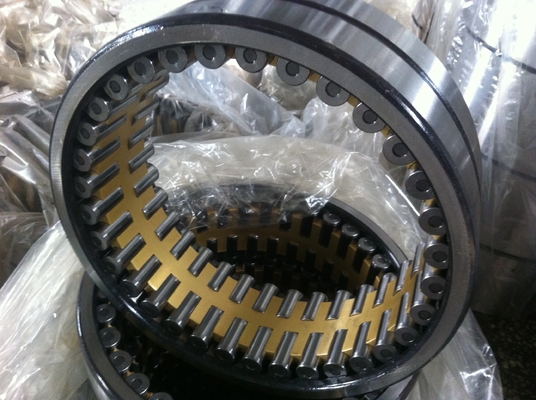

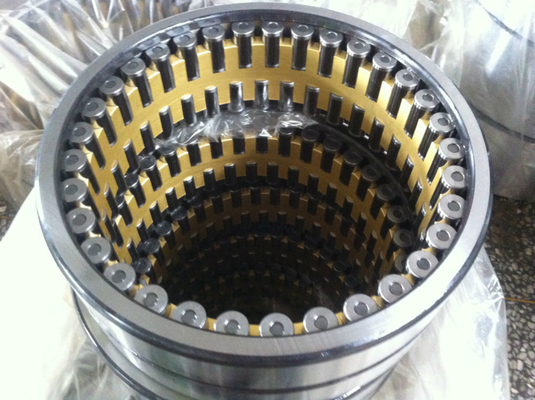

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.

FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.

22310ASK.578623 505057 24140AK30.527490
503288 508733A 506725A
508091A 24126ASK30.535611 509173
23136S.579251 505356 24140B.522444
503316 508776A 506743A
508308 24128ASK30.527487 509352
23140B.568923 505466 24140B.541020
503326A 508780 506869
508328B 24128S.541505 509391
23218ASK.801440 505467 24144AK30.514842
503594 508893A 506871
508368 24130ASK30.514243 509392
23236B.568924 505470 24144B.527514
503656 508955 506872
508370 24130BS.523822 509411
24028S.528857 505610 24148AK30.527491
503739 508990A 506962
508657 24132ASK30.527488 509590A
24032S.523823 505611B 24148B.517299
503742 509029 506963
508658A 24134ASK30.527489 509654
24038BS.523792 505612 24148B.541021
503745 509059A 506964
508726 24134BS.523378 509665
24040BS.525392 505613A 24152AK30.514242
503772 509091A 507333
508727 24136ASK30.525605 509680
24044B.572037 505614A 24152B.530662
503901.N12BA 509092A 507335
508728 24136BS.523817 509693A
24052B.572036 505684 24152B.561779
504083 509093A 507336
508729 24138AK30.518393 509737A
24056B.538565 506201 24156B.531079
504415A 509094A 507338A
508730A 24138B.536423 510033
24060B.531119 506497A 24160AK30.526655
504512 509098A 507339
508731A 510038 510035
24122ASK30.533310 24172AK30.801462 24160B.541538
504547 507343A 507341
508732A 510039 510036
24124S.578744 24184AK30.525933 24164AK30.523187
513342.N12BA 507344 507342A
517254 510041 511978
511044A 500857A 514166
513357 507448 517679
517329A 510043 511979
511045A 500860 514225
513378A 507508 517680A
517369A 510150 511980
511115 500861 514278A
