Taper roller thrust bearing for rolling mill bearings 353102

  • Taper roller thrust bearing for rolling mill bearings 353102
Place of Origin China
Certification ISO9001
Model Number 353102
Minimum Order Quantity 1
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 10days custom made
Payment Terms T/T;Western Union;Paypal;L/C
Supply Ability 30000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Row Double Row
Leave a Message
Product Description

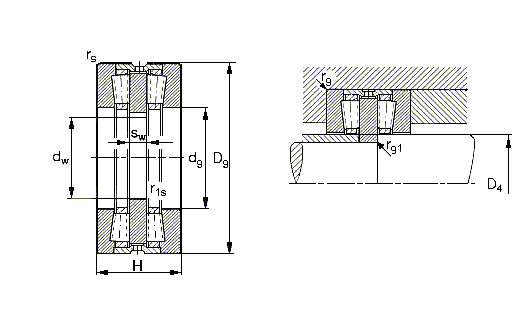

Rolling Mill Bearings 353102,taper thrust roller bearings,double direction

Bearing Name 353102 bearing
Model Number 353102
FAG old code 528562
FAG new code Z-528562.TA2
dw 320 mm
dg 355 mm
Dg 440 mm
H 108 mm
Dyn.C 980 kN
Stat.Co 4900 kN
Weight 47 kg
Desxcription Taper roller thrust bearing,double direction

As double direction tapered roller thrust bearings are usually mounted with a loose fit on the roll neck as well as in the chock, the shaft washer of most bearings has one or two locating slots. It is then possible to prevent the shaft washer from rotating on its seat by using keys which engage the slots, or by similar means.
