Taper roller thrust bearing for rolling mill bearings 351301 C

  • Taper roller thrust bearing for rolling mill bearings 351301 C
Place of Origin China
Certification ISO9001
Model Number 351301 C
Minimum Order Quantity 1
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 10days custom made
Payment Terms T/T;Western Union;Paypal;L/C
Supply Ability 5000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Row Double Row
Leave a Message
Product Description

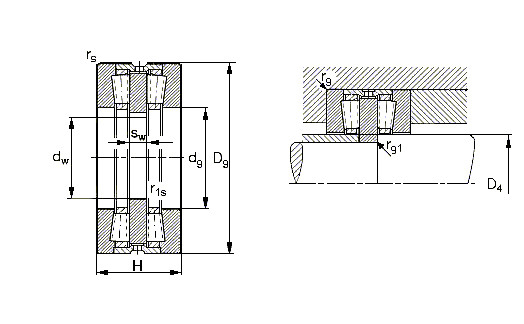

Rolling Mill Bearings 351301 C,taper thrust roller bearings,double direction,with spacer

Bearing Name 351301C bearing
Model Number 351301C
FAG code 509391 HW
dw 470 mm
dg 535 mm
Dg 720 mm
H 200 mm
Dyn.C 3410 kN
Stat.Co 17600 kN
Weight 285 kg
Desxcription Taper roller thrust bearing,double direction

As double direction tapered roller thrust bearings are usually mounted with a loose fit on the roll neck as well as in the chock, the shaft washer of most bearings has one or two locating slots. It is then possible to prevent the shaft washer from rotating on its seat by using keys which engage the slots, or by similar means.
