Rolling mill bearing for the roll neck 514461
Place of Origin | China |
---|---|
Brand Name | Neutral or OEM |
Certification | ISO9001 |
Model Number | 514461 |
Minimum Order Quantity | 1 pcs |
Packaging Details | Industrial packing or customer's request |
Delivery Time | 3 days in stock;within 10days custom made |
Payment Terms | T/T;Western Union;Paypal;L/C |
Supply Ability | 5000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.

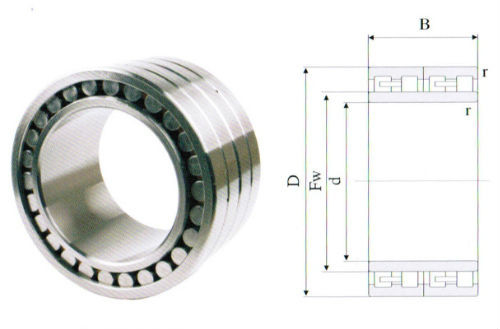

xRolling mill bearing for the roll neck 514461
Bearing name: | 514461 bearings |
New Model: | 514461 |
d : | 220mm |
D : | 310mm |
B : | 225 mm |
F : | 244 mm |
Load Rating(kN) | |
Dyn.C | 1940 |
Stat Co | 4300 |
Weight(kg) | 54.5 |
China code: | FCD4462225E |
bearing: | 313894B |
FAG bearing: | 514461 |
Bearing class: | Cylindrical Roller Bearings, four row |
Remarks: | Please contact us for other detail |
Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.
Interchangeable Table
Fag code | Fag old code | code | Nsk-code | Ntn-code | Koyo-code |
Z-502894.02.ZL | 502894B | 314190 | 160RV2301 | 4R3226 | 314190 |
Z-504547.ZL | 504547 | 635194 | |||
Z-506962.ZL | 506962 | 313891A | 150RV2302 | 4R3040 | 313891-1 |
Z-507333.ZL | 507333 | 313839 | 220RV3101 | 4R4426 | 313837A |
Z-507336.ZL | 507336 | 313823 | 260RV3701 | 4R5208 | 313823 |
Z-507339.ZL | 507339 | 313822 | 280RV3901 | 4R5611 | 313822 |
Z-507344.ZL | 507344 | 314385 | 200RV2804 | 4R4048 | 40FC28170 |
Z-507536.ZL | 507536 | 313812 | 180RV2601 | 4R3628 | 313812W |
Z-507735.ZL | 507735 | 313651 | 190RV2601 | 4R3820 | 38FC26168-1 |
Z-508657.ZL | 508657 | 314199B | 190RV2701 | 4R3821 | 314199 |
Z-508726.ZL | 508726 | 313893 | 200RV2802 | ||
Z-508727.ZL | 508727 | 313824 | 230RV3301 | 4R4610 | 313824 |
Z-510150.02.ZL | 510150B* | 315189A | 160RV2302 | 4R3232 | |
Z-511605.ZL | 511605 | 314625 | 145RV2101 | 4R2906 | 29FC21155 |
Z-512580.ZL | 512580 | 313811 | 200RV2901 | 4R4041 | 313811 |
Z-512764.ZL | 512764 | 313924A | 145RV2201 | 4R2904 | 313924 |
Z-522742.ZL | 522742 | 314553 | 4R4039 | 314553 | |
Z-524289.02.ZL | 524289B | 314484D | 300RV4221 | 4R6020 | 4CR300 |
Z-527104.ZL | 527104 | 314719 | 280RV3903 | ||
Z-527634.ZL | 527634 | 314485 | 340RV4801 | 4R6819 | 68FC48350D |
Z-529468.N12BA | 529468.N12BA | 315642/VJ202 | |||
Z-543975.ZL | 543975 | 314486A | 370RV5211 | ||
Z-804868.ZL-N12BA | 804868.N12BA | 314997VJ/202 |
Note:
1.Unide Beating Promise The Raw Material of All Products is Adopted High-grade Bearing Steel
2.Tolerance P0;P6;P5;P4;P2 as clients request is satisfied
