Split spherical roller bearing BS2B243126

China Split spherical roller bearing BS2B243126 supplier

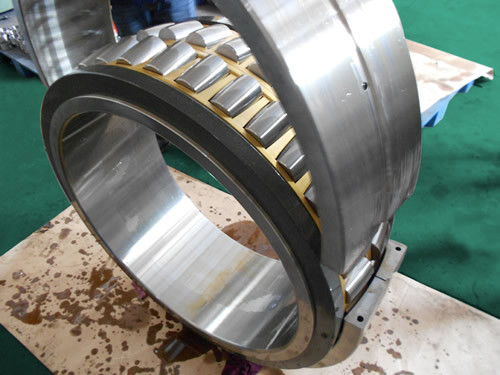

Large Image :  Split spherical roller bearing BS2B243126

Product Details:

Place of Origin: China
Certification: ISO9001
Model Number: BS2B243126

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Industrial packing or customer's request
Delivery Time: 5-7 days for stock number;within 30 days as order manufacture
Payment Terms: T/T;Western Union;Paypal;L/C
Contact Now
Detailed Product Description

Split spherical roller bearing BS2B243126,with bore diamater 900mm,outer diameter 1180mm,width 400mm

Dimensions (metric)/mm d 900
D 1180
C 280
B 400
Bearing Model BS2B243126
Bearing Category spherical roller bearing
MA Split machined brass cage
Approx. Wgt. kg 1100

Split spherical roller bearing BS2B243126           Split spherical roller bearing BS2B243126

Split spherical roller bearings are primarily used for bearing positions which are difficult to access such as on long shafts which require support at several positions, or on cranked shafts.

Bearing Design:

Split spherical roller bearings have a cylindrical bore.The inner ring,outer ring and cage with the roller set are split in half.The split bearing rings are held together by screws.

Range of Applications:

belt drives/ships/conveyor plants/rolling mills/paper machines

The internal design of split spherical roller bearings:

Split spherical roller bearing BS2B243126

Split spherical roller bearing BS2B243126 Split spherical roller bearing BS2B243126

Split spherical roller bearing BS2B243126 Split spherical roller bearing BS2B243126

Unide Bearing manufacture split spherical roller bearing BS2B243126,adapted from high-grade raw material which guarantee the stable performance of the bearings during the usage.BS2B243126 Inner and outer raceways are super-finished to improve the precision of the rotation.Please contact us for split spherical roller bearing BS2B243126unidebearing@yahoo.com
