CARB toroidal roller bearings C3152
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.

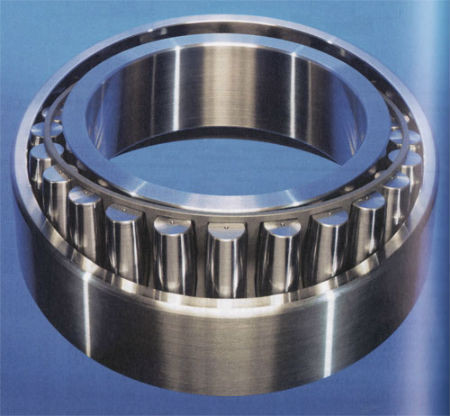

xC3152 CARB Toroidal Roller Bearing
Bearing Name | C3152 CARB Bearings |
Bearing Model | C3152 |
Bore Structure | Cylindrical |
Tapered Bore | C3152 K(1:12) |
d | 260 mm |
D | 440 mm |
B | 144 mm |
Dynamic(C) | 2650 kN |
Static(Co) | 4050 kN |
Weight | 87 kg |
Cages
- an injection moulded window-type cage of glass fibre reinforced polyamide 4,6, roller centred, designation suffix TN9
- a pressed window-type steel cage, roller centred, no designation suffix
- a machined window-type brass cage, roller centred, designation suffix M
- a two-piece machined brass cage, inner ring centred, designation suffix MB
Main application areas
• Steelmaking and rolling mills
• Conveyors and roller beds
• Paper machines
• Fans, blowers, pumps
• Crushers
• Gearboxes of all types
• Textile machines
• Food and beverage processing machines
• Agricultural machinery
• Vibrating screens
CARB Bearings drawing:
CARB Torodial Bearings with cages, Cylindrical bore and Taper bore( K) | |||||||||
ITEM | Principal Dimensions | Basic Load Rating | Fatigue Load Limit | Speed Ratings | Mass | ||||
Dynamic | Static | Reference Speed | Limit Speed | ||||||
CARB Bearing | d | D | B | C | C0 | Pu | |||
mm | kN | kN | r/min | kg | |||||
25 | 52 | 18 | 44 | 40 | 4,55 | 13000 | 18000 | 0,17 | |
C 2206 TN9 | 30 | 62 | 20 | 69,5 | 62 | 7,2 | 11000 | 15000 | 0,27 |
C 2207 TN9 | 35 | 72 | 23 | 83 | 80 | 9,5 | 9500 | 13000 | 0,43 |
C 2208 TN9 | 40 | 80 | 23 | 90 | 86,5 | 10,2 | 8000 | 11000 | 0,50 |
C 2209 TN9 | 45 | 85 | 23 | 93 | 93 | 10,8 | 8000 | 11000 | 0,55 |
C 4010 TN9 | 50 | 80 | 30 | 116 | 140 | 16 | 5000 | 7500 | 0,55 |
C 2210 TN9 | 50 | 90 | 23 | 98 | 100 | 11,8 | 7000 | 9500 | 0,59 |
C 2211 TN9 | 55 | 100 | 25 | 116 | 114 | 13,4 | 6700 | 9000 | 0,79 |
C 2212 TN9 | 60 | 110 | 28 | 143 | 156 | 18,3 | 5600 | 7500 | 1,10 |
C 2213 TN9 | 65 | 120 | 31 | 180 | 180 | 21,2 | 5300 | 7500 | 1,40 |
C 2214 TN9 | 70 | 125 | 31 | 186 | 196 | 23,2 | 5000 | 7000 | 1,45 |
C 2314 | 70 | 150 | 51 | 405 | 430 | 49 | 3800 | 5000 | 4,25 |
C 2314/C4VG114 | 70 | 150 | 51 | 405 | 430 | 49 | 3800 | 5000 | 4,25 |
C 2215 | 75 | 130 | 31 | 196 | 208 | 25,5 | 4800 | 6700 | 1,60 |
C 2315 | 75 | 160 | 55 | 425 | 465 | 52 | 3600 | 4800 | 5,20 |
C 2315/C4VG114 | 75 | 160 | 55 | 425 | 465 | 52 | 3600 | 4800 | 5,20 |
C 2216 | 80 | 140 | 33 | 220 | 250 | 28,5 | 4500 | 6000 | 2,00 |
C 2316 | 80 | 170 | 58 | 510 | 550 | 61 | 3400 | 4500 | 6,20 |
C 2316/C4VG114 | 80 | 170 | 58 | 510 | 550 | 61 | 3400 | 4500 | 6,20 |
C 2217 | 85 | 150 | 36 | 275 | 320 | 36,5 | 4300 | 5600 | 2,60 |
C 2317 | 85 | 180 | 60 | 540 | 600 | 65,5 | 3200 | 4300 | 7,30 |
C 2317/C4VG114 | 85 | 180 | 60 | 540 | 600 | 65,5 | 3200 | 4300 | 7,30 |
C 2218 | 90 | 160 | 40 | 325 | 380 | 42,5 | 3800 | 5300 | 3,30 |
C 2318 | 90 | 190 | 64 | 610 | 695 | 73,5 | 2800 | 4000 | 8,50 |
C 2318/C4VG114 | 90 | 190 | 64 | 610 | 695 | 73,5 | 2800 | 4000 | 8,50 |
C 2219 | 95 | 170 | 43 | 360 | 400 | 44 | 3800 | 5000 | 4,00 |
C 2319 | 95 | 200 | 67 | 610 | 695 | 73,5 | 2800 | 4000 | 10,0 |
C 2319/C4VG114 | 95 | 200 | 67 | 610 | 695 | 73,5 | 2800 | 4000 | 10,0 |
C 3120 | 100 | 165 | 52 | 415 | 540 | 58,5 | 3200 | 4300 | 4,40 |
C 2220 | 100 | 180 | 46 | 415 | 465 | 47,5 | 3600 | 4800 | 4,85 |
C 2320 | 100 | 215 | 73 | 800 | 880 | 91,5 | 2600 | 3600 | 12,5 |
C 2320/C4VG114 | 100 | 215 | 73 | 800 | 880 | 91,5 | 2600 | 3600 | 12,5 |
C 3022 | 110 | 170 | 45 | 355 | 480 | 51 | 3200 | 4500 | 3,50 |
C 2222 | 110 | 200 | 53 | 530 | 620 | 64 | 3200 | 4300 | 6,90 |
C 3024 | 120 | 180 | 46 | 375 | 530 | 55 | 3000 | 4000 | 3,90 |
C 2224 | 120 | 215 | 58 | 610 | 710 | 72 | 3000 | 4000 | 8,60 |
C 3224 | 120 | 215 | 76 | 750 | 980 | 98 | 2400 | 3200 | 11,5 |
C 3026 | 130 | 200 | 52 | 390 | 585 | 58,5 | 2800 | 3800 | 5,90 |
C 4026 | 130 | 200 | 69 | 620 | 930 | 91,5 | 1900 | 2800 | 7,84 |
C 2226 | 130 | 230 | 64 | 735 | 930 | 93 | 2800 | 3800 | 11,0 |
C 3028 | 140 | 210 | 53 | 490 | 735 | 72 | 2600 | 3400 | 6,30 |
C 2228 | 140 | 250 | 68 | 830 | 1060 | 102 | 2400 | 3400 | 13,8 |
C 3030 MB | 150 | 225 | 56 | 540 | 850 | 83 | 2400 | 3200 | 8,30 |
C 3130 | 150 | 250 | 80 | 880 | 1290 | 122 | 2000 | 2800 | 15,0 |
C 2230 | 150 | 270 | 73 | 980 | 1220 | 116 | 2400 | 3200 | 17,5 |
C 3032 | 160 | 240 | 60 | 600 | 980 | 93 | 2200 | 3000 | 9,60 |
C 4032 | 160 | 240 | 80 | 795 | 1160 | 110 | 1600 | 2400 | 12,3 |
C 3132 | 160 | 270 | 86 | 1000 | 1400 | 132 | 2000 | 2600 | 20,0 |
C 3232 | 160 | 290 | 104 | 1370 | 1830 | 170 | 1700 | 2400 | 28,5 |
C 3034 | 170 | 260 | 67 | 750 | 1160 | 108 | 2000 | 2800 | 12,5 |
C 3134 | 170 | 280 | 88 | 1040 | 1460 | 137 | 1900 | 2600 | 21,0 |
C 2234 | 170 | 310 | 86 | 1270 | 1630 | 150 | 2000 | 2600 | 28,0 |
C 3036 | 180 | 280 | 74 | 880 | 1340 | 125 | 1900 | 2600 | 16,5 |
C 3136 | 180 | 300 | 96 | 1250 | 1730 | 156 | 1800 | 2400 | 26,0 |
C 3236 | 180 | 320 | 112 | 1530 | 2200 | 196 | 1500 | 2000 | 37,0 |
C 3038 | 190 | 290 | 75 | 930 | 1460 | 132 | 1800 | 2400 | 17,5 |
C 3138 | 190 | 320 | 104 | 1530 | 2200 | 196 | 1600 | 2200 | 33,5 |
C 2238 | 190 | 340 | 92 | 1370 | 1730 | 156 | 1800 | 2400 | 34,0 |
C 3040 | 200 | 310 | 82 | 1120 | 1730 | 153 | 1700 | 2400 | 22,0 |
C 3140 | 200 | 340 | 112 | 1600 | 2320 | 204 | 1500 | 2000 | 40,0 |
C 3044 | 220 | 340 | 90 | 1320 | 2040 | 176 | 1600 | 2200 | 29,0 |
C 3144 | 220 | 370 | 120 | 1900 | 2900 | 245 | 1400 | 1900 | 51,0 |
C 2244 | 220 | 400 | 108 | 2000 | 2500 | 216 | 1500 | 2000 | 56,5 |
C 3048 | 240 | 360 | 92 | 1340 | 2160 | 180 | 1400 | 2000 | 31,5 |
C 3148 | 240 | 400 | 128 | 2320 | 3450 | 285 | 1300 | 1700 | 63,0 |
C 3052 | 260 | 400 | 104 | 1760 | 2850 | 232 | 1300 | 1800 | 46,0 |
C 3152 | 260 | 440 | 144 | 2650 | 4050 | 325 | 1100 | 1500 | 87,0 |
C 3056 | 280 | 420 | 106 | 1860 | 3100 | 250 | 1200 | 1600 | 50,0 |
C 3156 | 280 | 460 | 146 | 2850 | 4500 | 355 | 1100 | 1400 | 93,0 |
C 3060 M | 300 | 460 | 118 | 2160 | 3750 | 290 | 1100 | 1500 | 71,0 |
C 4060 M | 300 | 460 | 160 | 2900 | 4900 | 380 | 850 | 1200 | 95,0 |
C 3160 | 300 | 500 | 160 | 3250 | 5200 | 400 | 1000 | 1300 | 120 |
C 3064 M | 320 | 480 | 121 | 2280 | 4000 | 310 | 1000 | 1400 | 76,5 |
C 3164 M | 320 | 540 | 176 | 4150 | 6300 | 480 | 950 | 1300 | 160 |
C 3068 M | 340 | 520 | 133 | 2900 | 5000 | 375 | 950 | 1300 | 100 |
C 3168 M | 340 | 580 | 190 | 4900 | 7500 | 560 | 850 | 1200 | 205 |
C 3972 M | 360 | 480 | 90 | 1760 | 3250 | 250 | 1000 | 1400 | 44,0 |
C 3072 M | 360 | 540 | 134 | 2900 | 5000 | 375 | 900 | 1200 | 105 |
C 3172 M | 360 | 600 | 192 | 5000 | 8000 | 585 | 800 | 1100 | 215 |
C 3976 MB | 380 | 520 | 106 | 2120 | 4000 | 300 | 950 | 1300 | 65,5 |
C 3076 M | 380 | 560 | 135 | 3000 | 5200 | 390 | 900 | 1200 | 110 |
C 3176 MB | 380 | 620 | 194 | 4400 | 7200 | 520 | 750 | 1000 | 243 |
C 3980 MB | 400 | 540 | 106 | 2160 | 4150 | 305 | 900 | 1300 | 69,0 |
C 3080 M | 400 | 600 | 148 | 3650 | 6200 | 450 | 800 | 1100 | 140 |
C 3180 MB | 400 | 650 | 200 | 5000 | 8650 | 610 | 700 | 950 | 275 |
