7602 series ball screw support bearing 7602055-TVP

  • 7602 series ball screw support bearing 7602055-TVP
Place of Origin China
Brand Name Neutral or OEM
Certification ISO9001
Model Number 7602055-TVP
Minimum Order Quantity 5
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 20days custom made
Payment Terms T/T;Western Union;Paypal;L/C
Supply Ability 20000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Precision Rating P4;P2 Number Of Row Single Row
Leave a Message
Product Description

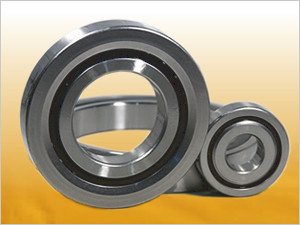

High precision ball screw support bearing 7602055-TVP

single direction, with contact angle α = 60°

7602 series ball screw support bearing 7602055-TVP 07602 series ball screw support bearing 7602055-TVP 1

Bearing Name Ball Screw Bearings 7602055-TVP
Bearing Class Axial Angular Contact Ball Bearing
China Code 760211
Model 7602055-TVP
d 50 mm
D 100 mm
B 21 mm
Weight 0.740 kg
Contact Angle  60°
Cage Polyamide
Tolerance P4/ABEC-7
Model Dimensions(mm) Loading Rating Limiting Speed r/min Mass/ kg
d D B rs/min ris /min Dyn./Cr Stat /Cor Grease
7602012TN 12 32 10 0.6 24 11.6 12.5 8000 0.042
7602015TN 15 35 11 0.6 27.4 12.5 15 6000 0.052
7602017TN 17 40 12 0.6 31 16.6 20 6000 0.0705
7602020TN 20 47 14 1 36 19.3 25 5000 0.13
7603020TN 20 52 15 1.1 39.5 24.5 32 4500 1.175
7602025TN 25 52 15 1 41 22 30.5 4500 0.16
7603025TN 25 62 17 1.1 47.5 28.5 41.5 3800 0.28
7602030TN 30 62 16 1 48 26 39 3800 0.24
7603030TN 30 72 19 1.1 55.5 34.5 55 3200 1.415
7602035TN 35 72 17 1.1 55 30 50 3200 0.345
7603035TN 35 80 21 1.5 61.5 36.5 61 3000 0.555
7602040TN 40 80 18 1.1 62.5 37.5 64 2800 0.445
7603040TN 40 90 23 1.5 68.5 50 83 2600 0.765
7602045TN 45 85 19 1.1 66 38 68 2600 0.505
7603045TN 45 100 25 1.5 77.5 58.5 104 2200 1.02
7602050TN 50 90 20 1.1 71.5 39 75 2400 0.575
7603050TN 50 110 27 2 85.5 69.5 127 2000 1.33
7602055TN 55 100 21 1.5 77.5 40.5 81.5 2200 0.75
7603055TN 55 120 29 2 91.5 78 164 1900 1.69
7602060TN 60 110 22 1.5 86 56 112 2000 0.96
7603060TN 60 130 31 2.1 98 88 166 1800 2.12
7602065TN 65 120 23 1.5 92.5 57 122 1800 1.2
7603065TN 65 140 33 2.1 107.5 100 196 1600 2.6
7602070TN 70 125 24 1.5 96.5 65.5 137 1800 1.32
7603070TN 70 150 35 2.1 113 110 220 1600 3.16
7602075TN 75 130 25 1.5 102.5 67 150 1700 1.45
7603075TN 75 160 37 2.1 123 125 255 1400 3.79
7602080TN 80 140 26 2 109 76.5 175 1500 1.76
7603080TN 80 170 39 2.1 129 137 285 1400 4.5
7602085TN 85 150 28 2 117 86.5 196 1400 2.19
7603085TN 85 180 41 3 136 160 325 1300 5.29
7602090TN 90 160 30 2 124 98 224 1400 2.69
7603090TN 90 190 43 3 142.5 163 345 1300 6.17
7602095TN 95 170 32 2.1 131 110 255 1300 3.26
7603095TN 95 200 45 3 150 163 360 1200 7.15
76020100TN 100 180 34 2.1 138 122 285 1300 3.19
76030100TN 100 215 47 3 161 193 430 1100 8.73
