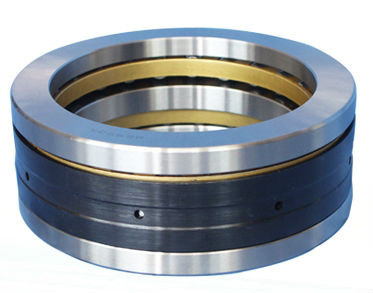

829970/351100C/530739 double direction thrust tapered roller bearing
Bearing Dimensions (metric)/mm | d | 350 |
D | 490 | |
D1 | 390 | |
H | 130 | |
Approx. Wgt. kg | 73.5 | |
Inventory | ||
Interchange | FAG Bearing | 530739 |
Bearing | 351100C | |
Torrington | ||
China | 829970 |
Doubel-direction thrust tapered roller bearings is separable bearing, can install washer, bearing seat, cage, and roller components.double direction taper roller thrust bearings are normally used in the rolling mill applications associated with a multi row cylindrical roller bearing( Pic 1).

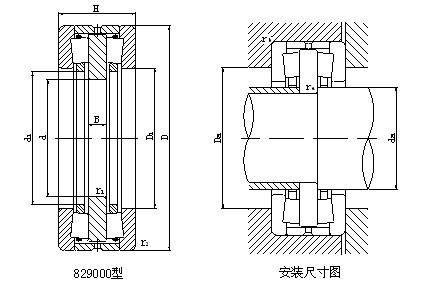

►Pic.1
Dimensions (mm) | Basic load rating (KN) | Weight (kg) | Number | FAG | ||||
d | D | H | ||||||
Dynamic | Staitc | |||||||
160 | 300 | 110 | 580 | 2900 | 3.5 | 829232 | 515805 | |
170 | 240 | 84 | 380 | 1390 | 12.5 | 829234 | 350980C | 528974 |
180 | 280 | 90 | 580 | 2900 | 21 | 829736 | 353162 | 528294 |
220 | 300 | 96 | 450 | 1800 | 19.5 | 829244 | 351019C | 528876 |
230 | 400 | 180 | 980 | 4800 | 114 | 829746 | 530852 | |
240 | 320 | 96 | 430 | 2000 | 21.5 | 829748 | 354182C | 529086 |
250 | 380 | 100 | 850 | 500 | 42.3 | 829950 | 353005 | 502010 |
260 | 360 | 92 | 630 | 3200 | 27.7 | 829252 | 350981C | 509352 |
270 | 450 | 180 | 1700 | 6100 | 118 | 829954 | 351164C | 527907 |
300 | 420 | 100 | 890 | 4500 | 42 | 829260 | 524740 | |
320 | 440 | 108 | 990 | 4700 | 48 | 829264 | 353102C | 528562 |
320 | 470 | 130 | 1350 | 5800 | 79 | 829764 | 350982C | 509654 |
350 | 490 | 130 | 1200 | 5300 | 73.5 | 826970 | 351100C | 530739 |
350 | 540 | 135 | 1750 | 9200 | 112 | 829970K | 353006 | 522008 |
360 | 560 | 200 | 2400 | 12500 | 180 | , 829272 | 524194 | |
380 | 530 | 130 | 1800 | 10000 | 829276 | 513828 | ||
380 | 560 | 130 | 1800 | 10000 | 108 | 829776 | 351175C | 513125 |
380 | 650 | 215 | 3400 | 17200 | 829976 | BFDB353204 | 545936 | |
400 | 650 | 200 | 2700 | 13800 | 829780 | 540162 | ||
420 | 620 | 170 | 2420 | 12200 | 829784 | 351121C | 509392 | |
420 | 620 | 185 | 2420 | 12200 | 829784K | BFDB353200/HA3 | 545991 | |
440 | 645 | 167 | 1980 | 10800 | 829788 | 353151 | 534038 | |
450 | 645 | 155 | 1980 | 10800 | 829990 | 350916D | 513401 | |
470 | 720 | 200 | 3450 | 18000 | 829994 | 353151 | ||
470 | 720 | 210 | 3450 | 18000 | 829794 | BFDB353238/HA3 | 549701 | |
480 | 710 | 218 | 2900 | 13000 | 829796 | 547584 | ||
530 | 710 | 218 | 2300 | 14000 | 8292/530 | 351475C | 511746 | |
550 | 760 | 230 | 2950 | 13500 | 8297/550 | 350976C | 515196 | |
600 | 880 | 290 | 4750 | 21500 | 8297/600 | BFDB350824B/HA1 | ||
670 | 900 | 230 | 3600 | 19500 | 8292/670 | 351761A |
