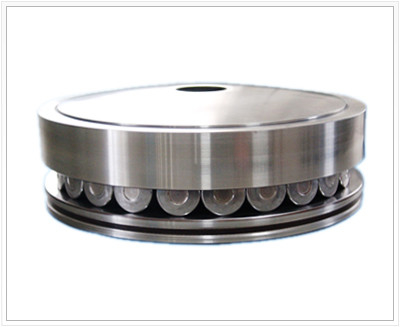

TTSX235(4397/235) Screw-down thrust taper roller bearings

  • TTSX235(4397/235) Screw-down thrust taper roller bearings
Place of Origin China
Certification ISO9001
Model Number TTSX235
Minimum Order Quantity 1
Packaging Details Industrial packing or customer's request
Delivery Time 3 days in stock;within 30days custom made
Payment Terms T/T;Western Union;Paypal;L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

TTSX235(4397/235) Screw-down thrust taper roller bearings

Bearing Dimensions (metric)/mm D 235
D1 233
T1 73
T 85
Approx. Wgt. kg 23.7
Interchange FAG
 Bearing
Torrington
China(Old No.) 4397/235

TTSX235(4397/235) Screw-down thrust taper roller bearings 0

Dimensions (mm)         Static Load Rating weight Number FAG
D  D1 T T1 d1 R M
100 98 37 32 87 250 8     TTSX100
120 118 45 38 105 300 10 1365 3.3 TTSX120
150 148 55 47 127 457 12 2325 6.3 TTSX150   536626
150 148 55 47 127 550 12 2325 6.3 TTSX150K
150 148 48   127 228.6 12 2325 5.7 TTSV150
175 173 62 53 152 457 12 3223 9.6 TTSX175   537778
175 173 62 53 152 550 12 3223 9.7 TTSX175K   543535
175 173 53   152 228.6 12 3223 8.5 TTSV175
203 201 75.6 65 178 508 12 4500 16 TTSX203 353108A
203 201 76 65.4 170.8 508 12 4500 16.2 TTSX203K
203 201 85 65 170 250 12 4500 17 TTSX203K1
203 201 65   178 254 12 4584 10.2 TTSV203   536716
205 203 76 65 178 508 12 4585 16.2 TTSX205
205 203 65   178 254 20 4585 14.3 TTSV205
235 233 85 73 208 560 20 6028 23.7 TTSX235
235 233 73   208 280 20     TTSV235
265 263 95 81 229 609 20 7753 33.9 TTSX265 353038A 522978
265 263 81   229 304.8 20     TTSV265   524088
320 318 112 95 , 280 762 20 11500 58.9 TTSX320 353065B 525469
320 318 122.7 95 280 470 20 11500 62.1 TTSX320K
320 318 118.5 95 280 550 20     TTSX320K1
320 318 95   280 381 20 11500 51 TTSV320
330 328 95   280 381 20 11500 51.4 TTSV33K
377 375 129 112 330 914 24     TTSX377 353107A 534470
377 375 129 112 330 930 24 16044 94.7 TTSX377K
377 375 112   330 457.2 24     TTSV377   524578
380 378 129 112 330 914.4 24     TTSX380
380 378 112   330 457.2 24     TTSV380
410 408 142 122 355 1016 24     TTSX410 353058B 524192
410 408 122   355 508 24     TTSV410   533632
440 438 152 130 380 1016 24     TTSX440   517113
440 438 130   380 508 24 23330 137
495 492 172 146 432 1066.8 24     TTSX495 353024B 517982
495 492 146   432 558.8 24     TTSV495
525 522 180 155 460 1270 24 36202 266 TTSX525 353020A 517979
525 522 155   460 635 24     TTSV525   524105
555 552 192 165 482 1270 24     TTSX555   524340
555 552 165   482 635 24     TTSV555   527795
580 577 165   510 710 24 41560 300.6 TTSV580 616674
581 579 193.777 168.275 508 1422.4 24 38984 338 THR581XY 353124A 531065
610 607 205 178 533 1524 30     TTSX610 353093A 526199
610 607 178   533 762 30     TTSV610
640 637 214.5 185 550 1520 30 48560 454 TTSX640 BFSD353134 526198
640 637 185   550 762 30 49200 418 TTSV640   549498
710 705 250 210 610 1600 30     TTSX710
710 705 250 205 610 1400 30 62703 647 TTSX710K
,
750 745 260 225 650 1600 30 63900 747 TTSX750
800 795 270 245 700 1700 30     TTSX800
900 896 280 236 750 1800 36 94000 1150 TTSX900 97350
