NN3010K/SP double row cylindrical roller bearings 50x80x23mm

Place of Origin China
Certification ISO9001
Model Number NN3010KM
Minimum Order Quantity 1 pcs
Price ASK
Packaging Details Industrial
Delivery Time 3-5 days for stocks;within 15days by order producing
Payment Terms T/T;L/C;Western Union;Paypal
Supply Ability 5000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Precision Rating P5;P4;P2 Number Of Row Double Row
Leave a Message
Product Description

Cylindrical roller bearings,double row,NN series,tapered bore 1:12,separable,with cage

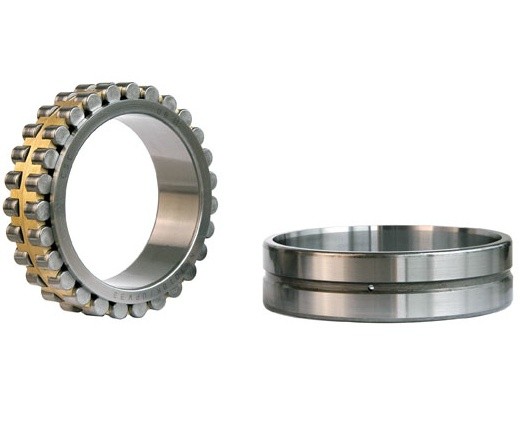

Bearing No.NN3010K/SPNN3010K/SP double row cylindrical roller bearings 50x80x23mm 0
Main Dimensionmm
Inside Dia-d50
Outside Dia-D80
Width-B23
Mass(kg)0.426
OEM ServiceYes
Bearing NameDouble row cylindrical roller bearings
CageBrass
ClearanceC0;C2;C3;C4;C5
ToleranceP5;P4
StructureCylindrical
Interchange
FAGNN3010-AS-K-M-SP
NTN
NSK
KOYO


 NN3010K/SP double row cylindrical roller bearings 50x80x23mm 1

Cylindrical roller bearings without outer ring capped edge

The NU cylindrical roller bearing has double capped edges on outer ring and without capped edge on inner ring
The N cylindrical roller bearing has double capped edges on inner ring and without capped edge on outer ring
The NU and N cylindrical roller bearings, the shaft is allowed two-way displacement toward the bearing box, i.e. the cylindrical roller bearings can bear the change of shaft length due to thermal expansion. Thus It is suitable to serve as a non-fixed bearing. It can bear larger radial load, but cannot take axial load.

Cylindrical roller bearings with capped edge on both outer ring and inner
The NJ cylindrical roller bearing has double capped edge on outer ring and single capped edge on inner ring.
The NF cylindrical roller bearing with the single capped edge on outer ring & double capped edges on inner ring
The NJ & NF cylindrical roller bearing, the axial-displacement of the shaft or housing on one-direction can be limited. The one-direction axial positioning can be reached. It can burden smaller axial load from one-direction.
The NUP cylindrical roller bearing with double capped edges on the outer ring & with capped edge on one side of the inner ring, as well as with inner ring loose rib on the other side of the inner ring. The two-way axial positioning toward the shaft can be reached. The bearing can bear two-way axial force. The NUP & N cylindrical roller bearings can be chosen for the structure. The NJ and HJ cylindrical roller bearing with separate thrust collar is similar to the NUP cylindrical roller bearing, it can be used as the fixed (positioning) bearing.

Cylindrical roller bearings without inner ring or without outer ring
The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.
The RNU and RN cylindrical roller bearing are used with a component having a limitation on radial dimension. The axial journal or the surface of the housing bore can be used as the raceways. The hardness and the machining precision as well as the surface quality should be same as the raceways of the inner ring and the outer ring.

Single row cylindrical roller bearing NU,NJ,NUP,N designsNN3010K/SP double row cylindrical roller bearings 50x80x23mm 2
NN3010K/SP double row cylindrical roller bearings 50x80x23mm 3Double row cylindrical roller bearings,NN and NNU designs
NN3010K/SP double row cylindrical roller bearings 50x80x23mm 4Single row full complement cylindrical roller bearing,NCF and NJG designs
NN3010K/SP double row cylindrical roller bearings 50x80x23mm 5Double row full complement cylindrical roller bearing,NNF design
NN3010K/SP double row cylindrical roller bearings 50x80x23mm 6Four row cylindrical roller bearing
NN3010K/SP double row cylindrical roller bearings 50x80x23mm 7Six row cylindrical roller bearing
