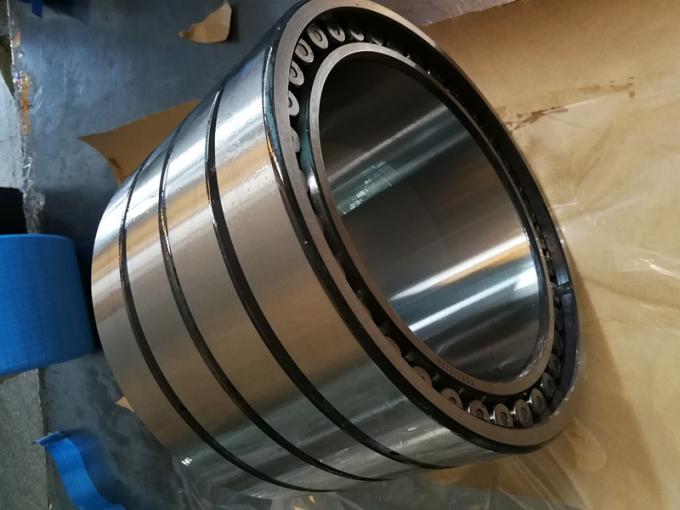

Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm)

I'm Online Chat Now

Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm)

China Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm) supplier
Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm) supplier Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm) supplier Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm) supplier Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm) supplier Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm) supplier

Large Image :  Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm)

Product Details:

Place of Origin: China
Model Number: FC5272230

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: ASK
Packaging Details: Color belt&wooden case or customer's request
Delivery Time: 3-5 days for stocks;within 15 days by order manufacturing
Payment Terms: T/T;Western Union;Paypal
Supply Ability: 5000 pcs/month
Stock Condition: Available
Contact Now
Detailed Product Description

FC5272230 rolling mill bearing 260x360x230 mm,cylindrical roller bearing,four row

--for interference fit on the roll neck,with circumferential lubricating grooves and lubricating holes on the outer ring

FC5272230 bearing details:
Bearing Main Dimension(mm) Load Rating(kN) Mass
Design d D B F Dyn.C Stat.Co kg
FC5272230 260 360 230 292 1980 4650 73.5
  FAG code
BC4B320956 SKF code
  NTN code
  NSK code
FC5272230 China Code
Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm)
Description:
Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.
FC: double outer rings, single inner ring, and inner without flange.
FCD: double outer rings, double inner rings, and inner ring without flange.
FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.

Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm)

Four row cylindrical roller bearing for roll neck FC5272230(260x360x230mm)



Part of Rolling Mill Bearings table:
Fag code Fag old code Skf code Nsk-code   Ntn-code   Koyo-code
Z-502894.02.ZL 502894B 314190 160RV2301 4R3226 314190
Z-504547.ZL 504547 635194
Z-506962.ZL 506962 313891A 150RV2302 4R3040 313891-1
Z-507333.ZL 507333 313839 220RV3101 4R4426 313837A
Z-507336.ZL 507336 313823 260RV3701 4R5208 313823
Z-507339.ZL 507339 313822 280RV3901 4R5611 313822
Z-507344.ZL 507344 314385 200RV2804 4R4048 40FC28170
Z-507536.ZL 507536 313812 180RV2601 4R3628 313812W
Z-507735.ZL 507735 313651 190RV2601 4R3820 38FC26168-1
Z-508657.ZL 508657 314199B 190RV2701 4R3821 314199
Z-508726.ZL 508726 313893 200RV2802
Z-508727.ZL 508727 313824 230RV3301 4R4610 313824
Z-510150.02.ZL 510150B 315189A 160RV2302 4R3232
Z-511605.ZL 511605 314625 145RV2101 4R2906 29FC21155
Z-512580.ZL 512580 313811 200RV2901 4R4041 313811
Z-512764.ZL 512764 313924A 145RV2201 4R2904 313924
Z-522742.ZL 522742 314553   4R4039 314553
Z-524289.02.ZL 524289B 314484D 300RV4221 4R6020 4CR300
Z-527104.ZL 527104 314719 280RV3903
Z-527634.ZL 527634 314485 340RV4801 4R6819 68FC48350D
Z-529468.N12BA   529468.N12BA 315642/VJ202
Z-543975.ZL 543975 314486A 370RV5211
Z-804868.ZL-N12BA   804868.N12BA 314997VJ/202
