350981 C double direction taper roller thrust bearing for rolling mills

I'm Online Chat Now

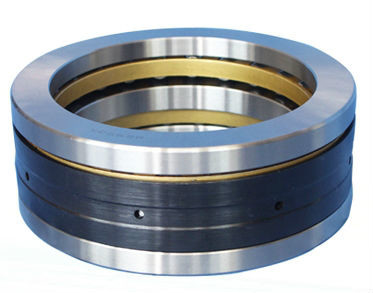

350981 C double direction taper roller thrust bearing for rolling mills

China 350981 C double direction taper roller thrust bearing for rolling mills supplier
350981 C double direction taper roller thrust bearing for rolling mills supplier 350981 C double direction taper roller thrust bearing for rolling mills supplier

Large Image :  350981 C double direction taper roller thrust bearing for rolling mills

Product Details:

Place of Origin: China
Certification: ISO9001
Model Number: 350981 C

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: USD1-100 per pcs
Packaging Details: Industrial packing or customer's request
Delivery Time: 1-3 days for ready goods
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description
Number Of Row: Double Row

350981C double direction taper roller thrust bearings for rolling mills

Bearing Name 350981 C bearing
Model Number 350981 C
FAG old code 509352
FAG new code Z-509352.TA2
dw 260 mm
dg 285 mm
Dg 360 mm
H 92 mm
Dyn.C 680 kN
Stat.Co 3100 kN
Weight 26 kg
Desxcription Taper roller thrust bearing,double direction

Double direction tapered roller thrust bearings

Tapered roller thrust bearings of the double direction type are mainly used together with multi-row cylindrical roller bearings in rolling mill applications. Those bearings with a plane shaft washer are the more popular as they are able to accommodate slight eccentricities of the shaft with respect to the housing bore, of the order of the radial internal clearance of the radial bearing with which they are used. A spacer sleeve is arranged between the two housing washers. This is dimensioned so that the cover screws of the chock can be fully tightened and no special spring adjustment of the bearing is required.

The double direction tapered roller thrust bearings with tapered raceways on the shaft and housing washers generally have a higher axial load carrying capacity than the bearings with a plane shaft washer and are able to radially locate the shaft to a certain extent. If the load carrying capacity of these bearings is inadequate with respect to the requisite life, double row tapered roller bearings with large contact angle of the TDIS design can be used instead,

As double direction tapered roller thrust bearings are usually mounted with a loose fit on the roll neck as well as in the chock, the shaft washer of most bearings has one or two locating slots. It is then possible to prevent the shaft washer from rotating on its seat by using keys which engage the slots, or by similar means.

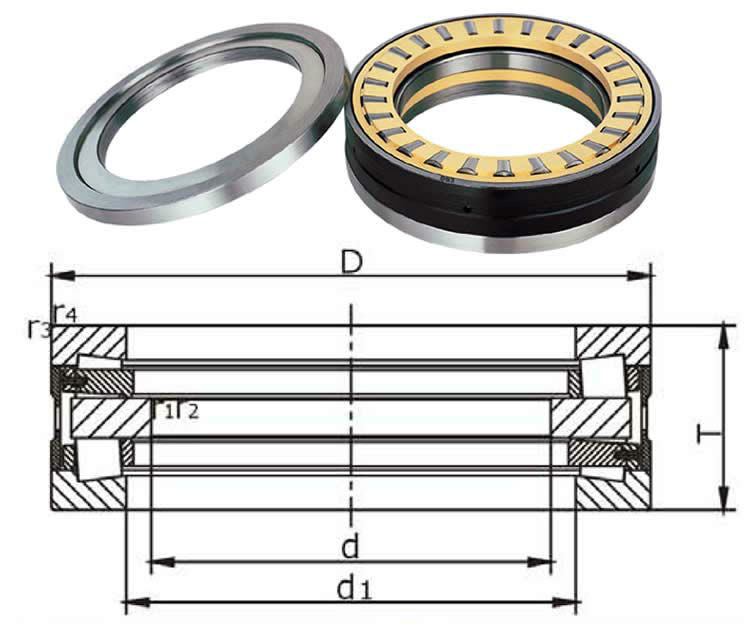

Dimensions (mm) Basic load rating (KN) Weight (kg) Number SKF FAG
d D H
Dynamic Staitc
160 300 110 580 2900 3.5 829232   515805
170 240 84 380 1390 12.5 829234 350980C 528974
180 280 90 580 2900 21 829736 353162 528294
220 300 96 450 1800 19.5 829244 351019C 528876
230 400 180 980 4800 114 829746   530852
240 320 96 430 2000 21.5 829748 351182C 529086
250 380 100 850 500 42.3 829950 353005 502010
260 360 92 630 3200 27.7 829252 350981C 509352
270 450 180 1700 6100 118 829954 351164C 527907
300 420 100 890 4500 42 829260   524740
320 440 108 990 4700 48 829264 353102C 528562
320 470 130 1350 5800 79 829764 350982C 509654
350 490 130 1200 5300 73.5 826970 351100C 530739
350 540 135 1750 9200 112 829970K 353006 522008
360 560 200 2400 12500 180 829272   524194
380 530 130 1800 10000   829276   513828
380 560 130 1800 10000 108 829776 351175C 513125
380 650 215 3400 17200   829976 BFDB353204 545936
400 650 200 2700 13800   829780   540162
420 620 170 2420 12200   829784 351121C 509392
420 620 185 2420 12200   829784K BFDB353200/HA3 545991
440 645 167 1980 10800   829788 353151 534038
450 645 155 1980 10800   829990 350916D 513401
470 720 200 3450 18000   829994 351301 C
470 720 210 3450 18000   829794 BFDB353238/HA3 549701
480 710 218 2900 13000   829796   547584
530 710 218 2300 14000   8292/530 351475C 511746
550 760 230 2950 13500   8297/550 350976C 515196
600 880 290 4750 21500   8297/600 BFDB350824B/HA1
670 900 230 3600 19500   8292/670 351761A
