Hydraulic puller kit

Powerful combination of a jaw and strong back puller

SKF original Hydraulic puller kit TMHC110ESKF original Hydraulic puller kit TMHC110E
The SKF TMHC 110E is a hydraulic puller kit, which combines a jaw puller and a strong back puller with up to 100 kN (11.2 ton US) pulling power. The versatile puller kit facilitates safe and easy dismounting in a variety of applications.

  • A versatile puller kit facilitates safe and easy dismounting in a variety of applications
  • Hydraulic spindle facilitates easy and quick dismounting
  • High load rating of 100 kN (11.2 US ton)
  • The strong back puller includes two different arm lengths for maximum reach of 120 mm (4.7 in.)

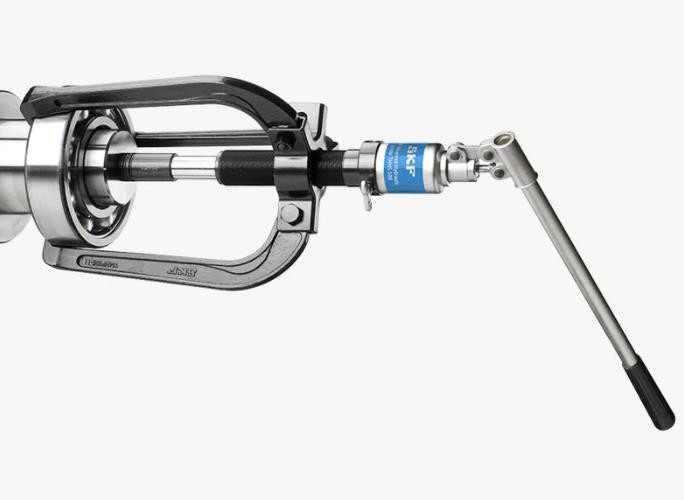

  • The jaw puller can be assembled as a three-arm or two-arm puller depending on the space and demands of the application

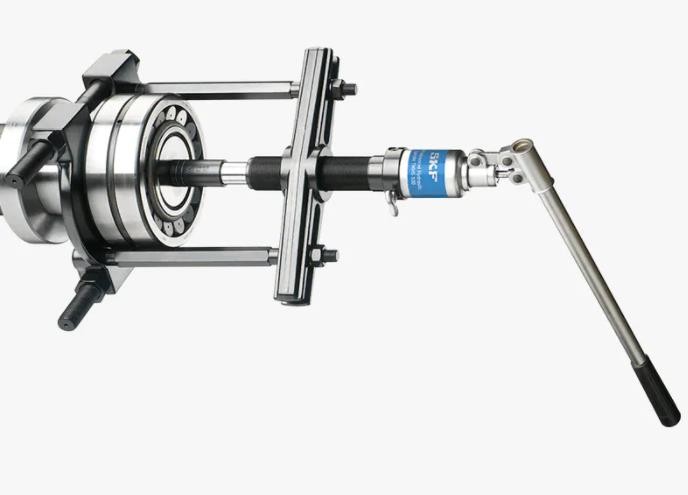

  • The firm grip of the strong back puller behind the bearing’s inner ring reduces the force required to dismount the bearing
  • Supplied with extension rods to allow quick adaptation to pulling lengths up to 245 mm (9.6 in.)
  • The spring-loaded centre point of the hydraulic spindle allows easy puller centring minimizing the risk of shaft damage
TECHNICAL DATA
Designation TMHC 110E
Description Advanced hydraulic puller kit
General

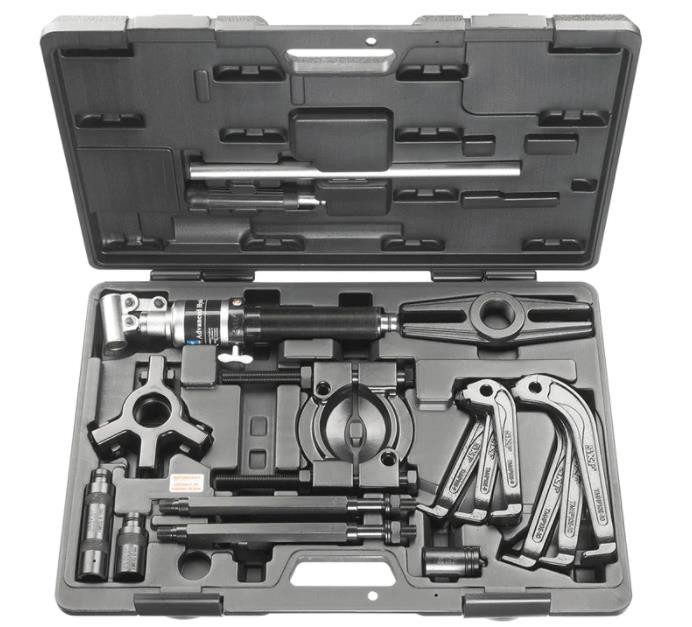

Contents1 x arm-assembly stand
3 x arms, set 1 (TMHP10E-9)
3 x arms, set 2 (TMHP10E-10)
1 x separator set
1 x beam
2 x main rods
2 x extension rods, 125 mm (4.9 in)
1 x hydraulic spindle TMHS 100
2 x extension pieces for hydraulic spindle; 50, 100 mm (2.0, 3.9 in)
1 x nosepiece with centre point for hydraulic spindle
Maximum stroke80 mm (3.1 in)
Nominal working force100 kN (11.2 US ton force)
Weight13,5 kg (29.8 lb)
Cycle life hydraulic cylinderMinimum 5000 cycles up to 100 kN (11.2 US ton force)
Threading hydraulic cylinderUN 1½'' x 16 tpi
Safety valve setting hydraulic cylinder105 kN (11.8 US ton force)
Carrying case dimensions580 x 410 x 70 mm (23 x 16 x 2.8 in)
Jaw pullerEffective arms length, arms set 1 (TMHP10E-9)65 mm (2.5 in)
Width of grip, arms set 150-110 mm (2-4.3 in)
Claw height8 mm (0.3 in)
Effective arms length, arms set 2 (TMHP10E-10)115 mm (4.5 in)
Width of grip, arms set 275-170 mm (2.9-6.7 in)
Claw height8 mm (0.3 in)
Strong back pullerMaximum reach250 mm (9.8 in)
Shaft diameter range20 - 100 mm (0.8 - 4 in)

SPARE PARTS
DesignationDescription
TMHP 10E-5Four arm stand with bolts and nuts for TMHP 10E and TMHC 110E
TMHP 10E-9Arm for TMHC 110E, 140 mm long
TMHP 10E-10Arm for TMHP 10E and TMHC 110E, 190 mm long
TMBS 100E-1Beam for TMBS 100E and TMHC 110E
TMBS 100E-2Main rods with washers and nuts for TMBS 100E, 150E and TMHC 110E
TMBS 100E-3Extension rod for TMBS 100E, 150E and TMHC 110E, 125 mm long
TMBS 100E-5Separator with bolts and nuts for TMBS 100E and TMHC 110E
TMHS 100Advanced hydraulic spindle, 100 kN
TMHS 100-1Advanced hydraulic spindle, 100 kN, spindle only
TMHS 8TSet of extension pieces and nose piece for TMHS 100 and 8E
