INA YOKE TYPE TRACK ROLLER NATR30-PP-A

China INA YOKE TYPE TRACK ROLLER NATR30-PP-A supplier
INA YOKE TYPE TRACK ROLLER NATR30-PP-A supplier INA YOKE TYPE TRACK ROLLER NATR30-PP-A supplier INA YOKE TYPE TRACK ROLLER NATR30-PP-A supplier

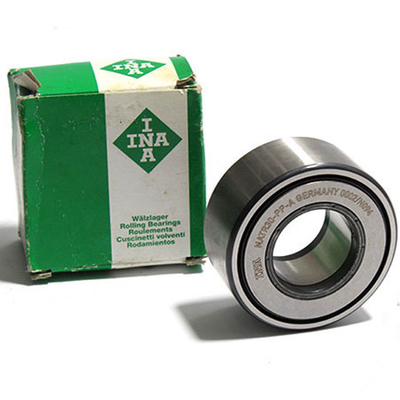

Large Image :  INA YOKE TYPE TRACK ROLLER NATR30-PP-A

Product Details:

Place of Origin: Germany
Brand Name: INA
Model Number: NATR30-PP-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: USD5-20/pcs
Packaging Details: Original standard
Delivery Time: 1-2 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Material: Bearing Steel Seal: PP
Relubrication Feature: Inner Ring

Manufacturer: Schaeffler INA
Type: Yoke type track roller
Model: NATR30-PP-A

Bore Diameter: 30 mm
Outer diameter: 62 mm
Width: 29 mm
Basic load ratings:
Dynamic Cr:
23 kN
Static C0r: 39.5 kN
Fatigue load limit, radial: 5.3 kN
Speed on permanent grease lubrication: 1300 rpm
Permissible static load, radial: 39.5 kN
Permissible dynamic load outer ring, radial: 39.5 kN
Weight: 0.46 kg

Yoke and stud type roller bearing track rollers:

  • are ready-to-fit needle or cylindrical roller bearings of single or double row design
  • are mounted on shafts or studs (yoke type track rollers) or supplied with a heavy-section roller stud with fixing thread and a mounting aid (stud type track rollers)
  • have particularly thick-walled outer rings with a crowned outside surface
  • can support high radial loads
  • tolerate axial loads which are due to small misalignment defects, skewed running or temporary contact running impacts
  • are available with or without an inner ring (yoke type track rollers)
  • are produced with or without axial guidance of the outer ring (stud type track rollers are always produced with axial guidance)
  • are open or sealed on both sides
  • are not mounted in a housing bore, but are supported on a flat mating track
  • can be adjusted to the mating track in the design with the eccentric collar, thus permitting, for example, larger manufacturing tolerances in the adjacent construction
