32316 single row taper roller bearing 80x170x61.5

China 32316 single row taper roller bearing 80x170x61.5 supplier

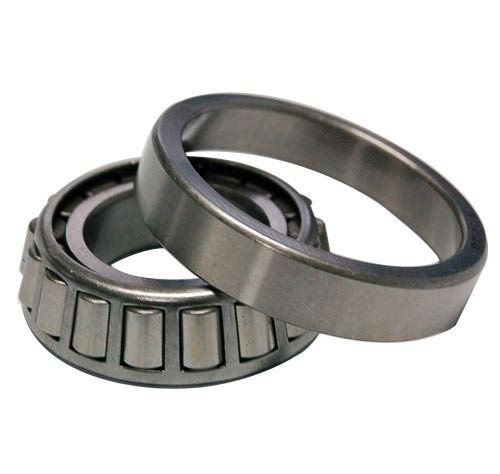

Large Image :  32316 single row taper roller bearing 80x170x61.5

Product Details:

Place of Origin: China
Certification: ISO9001
Model Number: 32316

Payment & Shipping Terms:

Minimum Order Quantity: 5
Price: US$13.45
Packaging Details: Industrial packing or customer's request
Delivery Time: 3-5 days in stock;within 20 days order manufacturing
Payment Terms: T/T;Western Union;Paypal
Supply Ability: 50000 pcs/month
Contact Now
Detailed Product Description



Bearing Name Taper Roller Bearing
Bearing Code New 32316
Old 7616E
Dimension(mm) d 80
D 170
61.5
B 58
C 48
Mass (kg) 6.2
Raw Material(Rings&Rollers) Chrome Steel GCR15

32316 single row taper roller bearing 80x170x61.5 32316 single row taper roller bearing 80x170x61.5

Bearing Principal Dimensions (mm) Masskg
d D T32316 single row taper roller bearing 80x170x61.5 B C
32303 17 47 20.25 19 16 0.17 Taper Roller Bearing
32304 20 52 22.25 21 18 0.23 Taper Roller Bearing
32305 25 62 25.25 24 20 0.36 Taper Roller Bearing
32306 30 72 28.75 27 23 0.55 Taper Roller Bearing
32307 35 80 32.75 31 25 0.73 Taper Roller Bearing
32308 40 90 35.25 33 27 1 Taper Roller Bearing
32309 45 100 38.25 36 30 1.35 Taper Roller Bearing
32310 50 110 42.25 40 33 1.8 Taper Roller Bearing
32311 55 120 45.5 43 35 2.5 Taper Roller Bearing
32312 60 130 48.5 46 37 2.8 Taper Roller Bearing
32313 65 140 51 48 39 4.3 Taper Roller Bearing
32314 70 150 54 51 42 4.25 Taper Roller Bearing
32315 75 160 58 55 45 5.55 Taper Roller Bearing
32316 80 170 61.5 58 48 6.2 Taper Roller Bearing
32317 85 180 63.5 60 49 7.5 Taper Roller Bearing
32318 90 190 67.5 64 53 8.4 Taper Roller Bearing
32319 95 200 71.5 67 55 11 Taper Roller Bearing
32320 100 215 77.5 73 60 12.5 Taper Roller Bearing
32321 105 225 81.5 77 63 14.5 Taper Roller Bearing
32322 110 240 84.5 80 65 17 Taper Roller Bearing
32324 120 260 90.5 86 69 21.5 Taper Roller Bearing
32326 130 280 98.75 93 78 30.5 Taper Roller Bearing
32328 140 300 107.75 102 85 37.8 Taper Roller Bearing
32330 150 320 114 108 90 46 Taper Roller Bearing
32332 160 340 121 114 95 50 Taper Roller Bearing
